自测--CDH6.3.1 搭建 (2核16G阿里云环境)

1.准备工作

1.1部署方式

• Cloudera-Manager离线部署

• MySQL离线部署

• Parcel文件离线源部署

1.2集群规划

1.3下载源

• CM

• cm6.3.1-redhat7.tar.gz

• Parcel
• CDH-6.3.2-1.cdh6.3.2.p0.1605554-el7.parcel
• CDH-6.3.2-1.cdh6.3.2.p0.1605554-el7.parcel.sha1
• manifest.json

• JDK

• 下载jdk-8u181-linux-x64.tar.gz

• MySQL

• 下载mysql-5.7.26-el7-x86_64.tar.gz

• MySQL jdbc jar
• mysql-connector-java-5.1.47.jar
• 下载完成后要重命名去掉版本号: mv mysql-connector-java-5.1.47.jar mysql-connector-java.jar

2.集群节点初始化

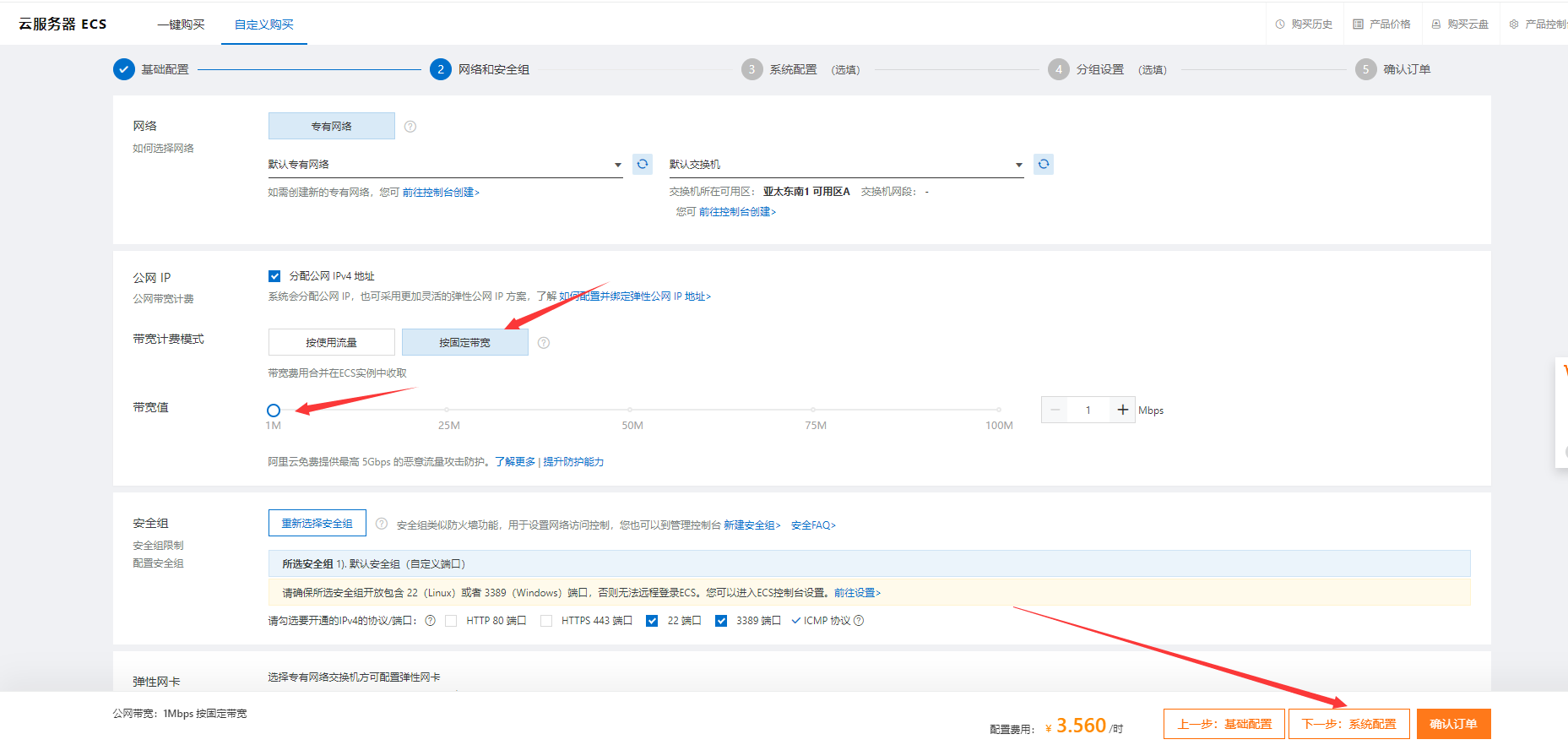

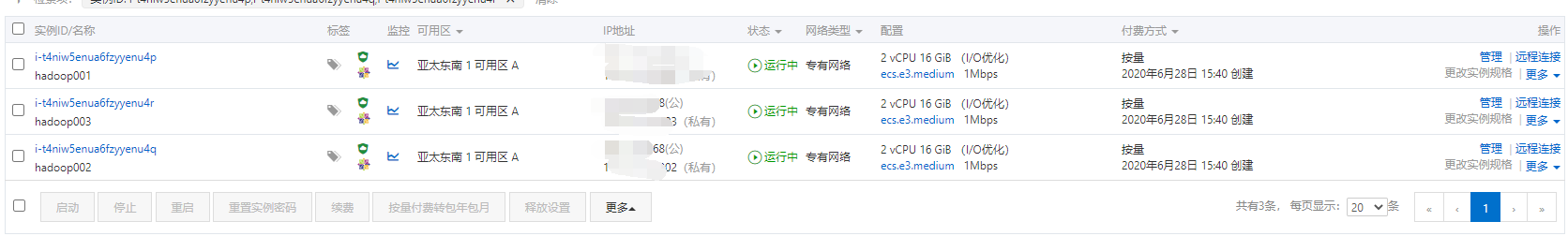

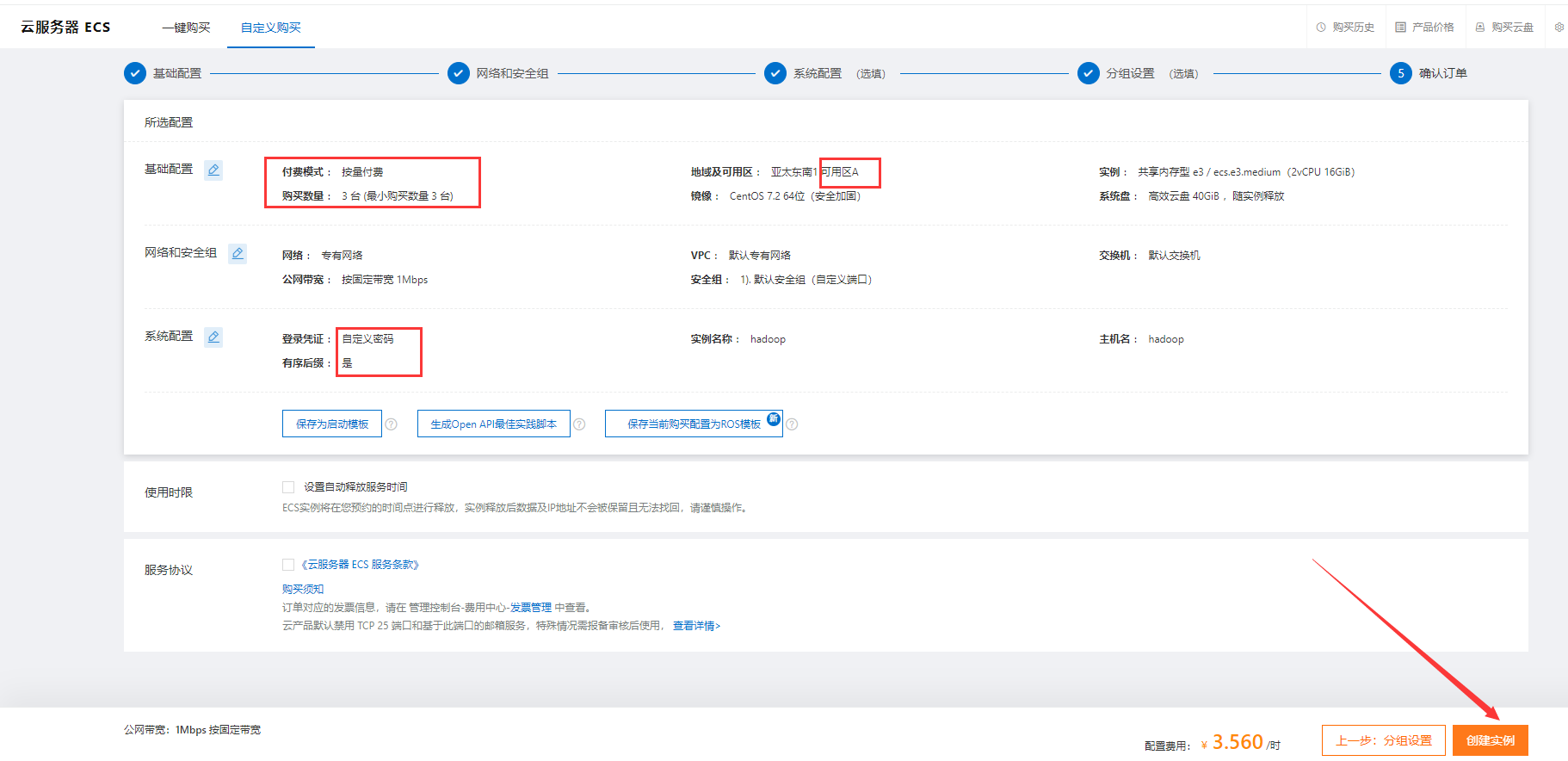

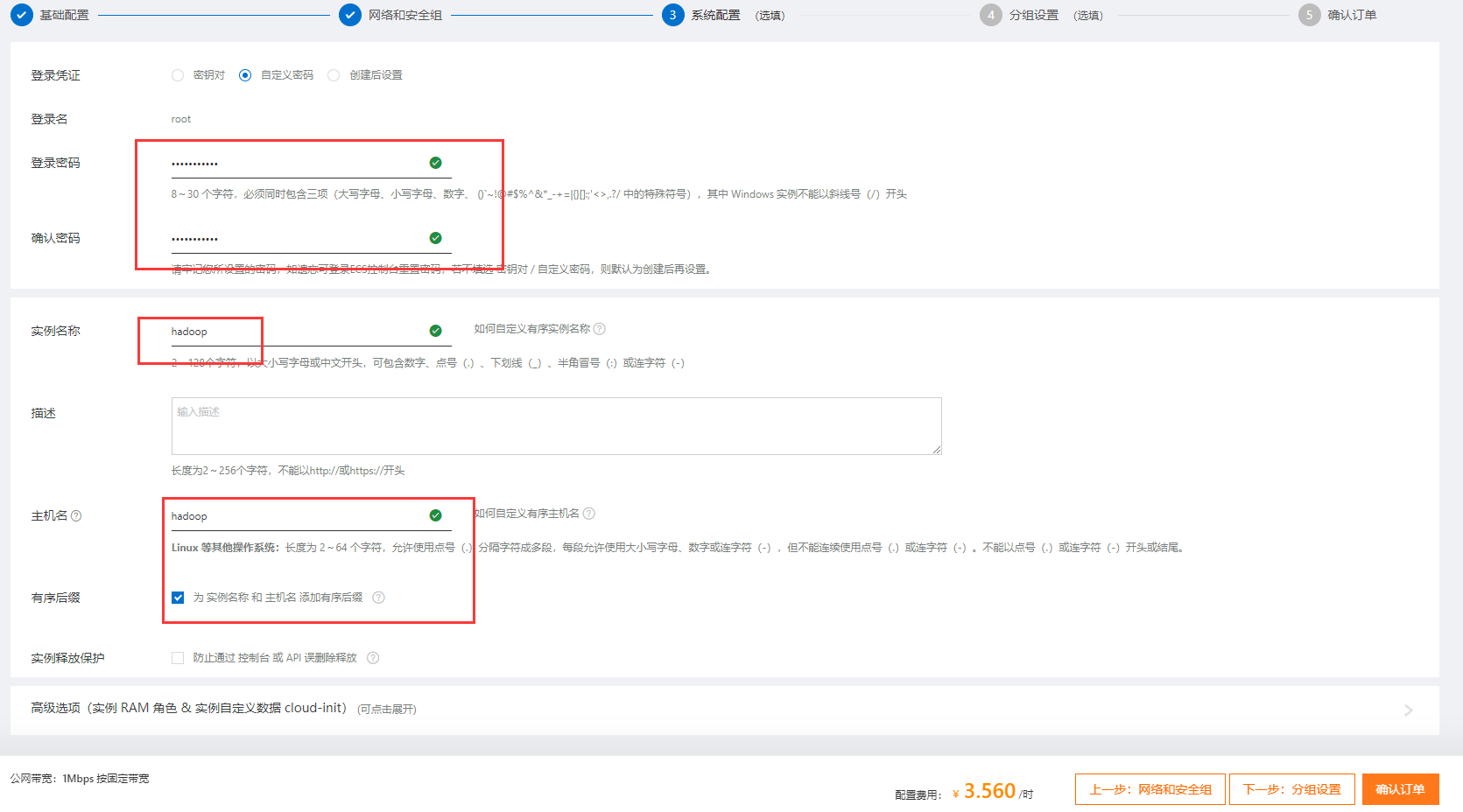

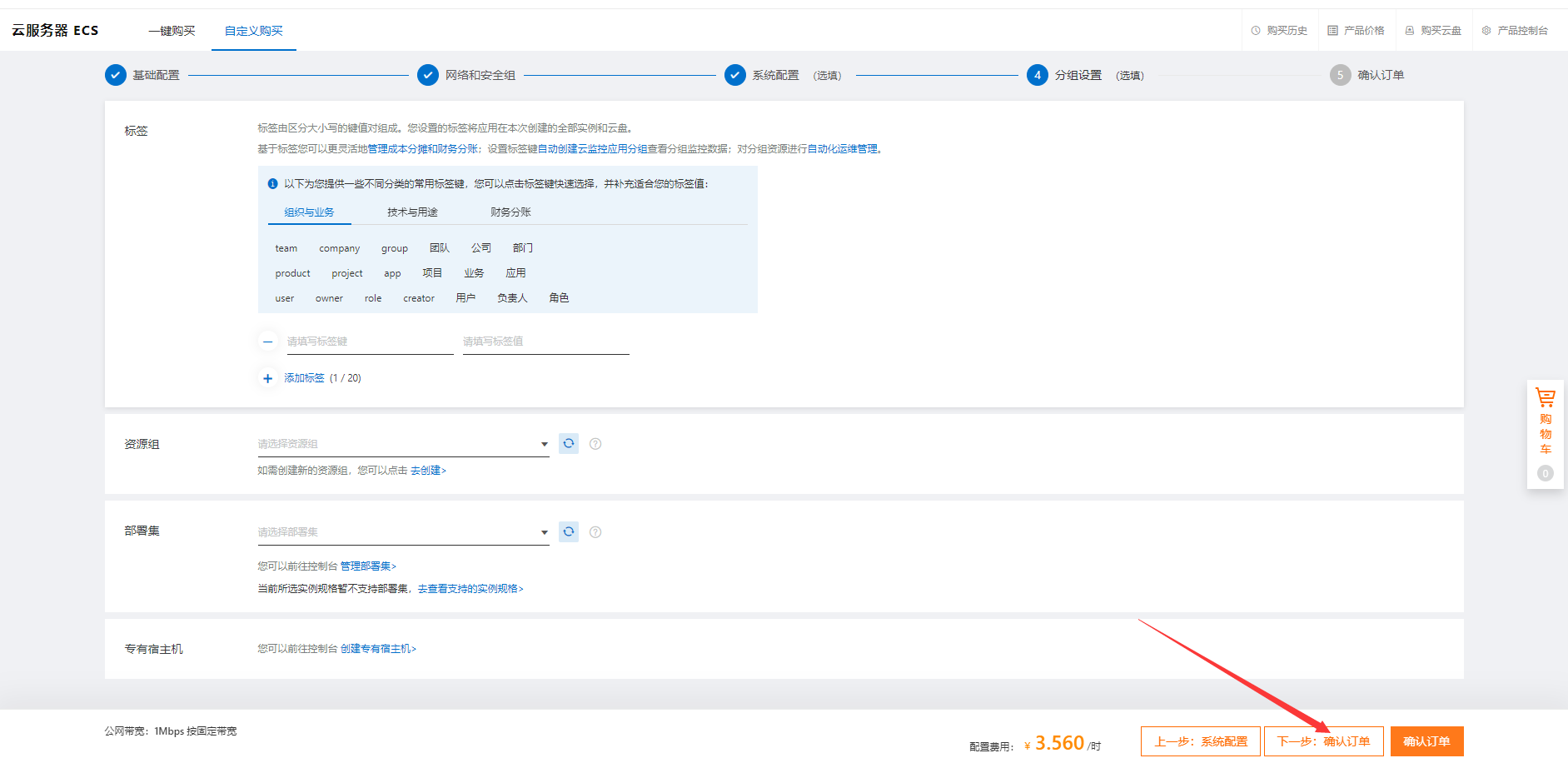

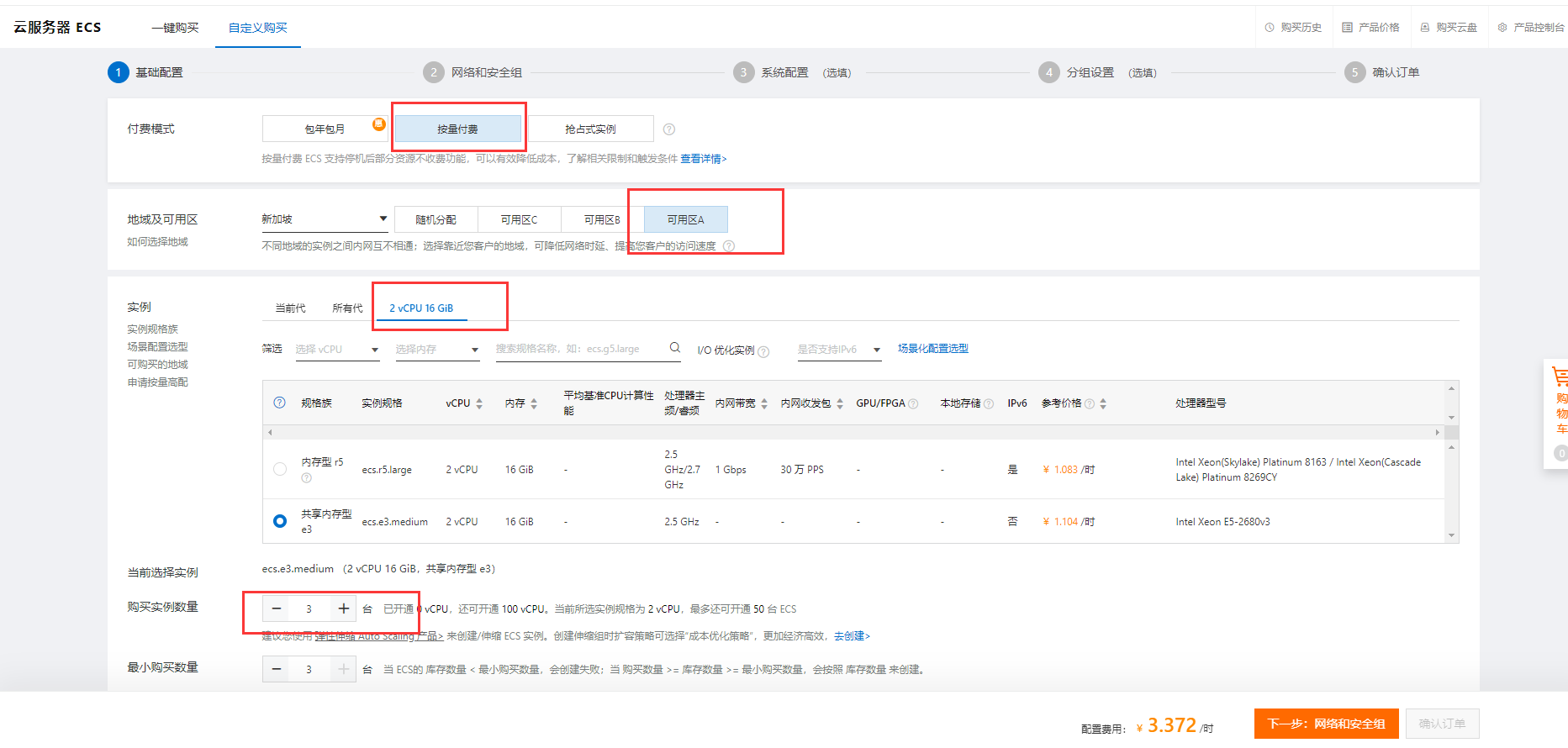

2.1购买阿里云服务器

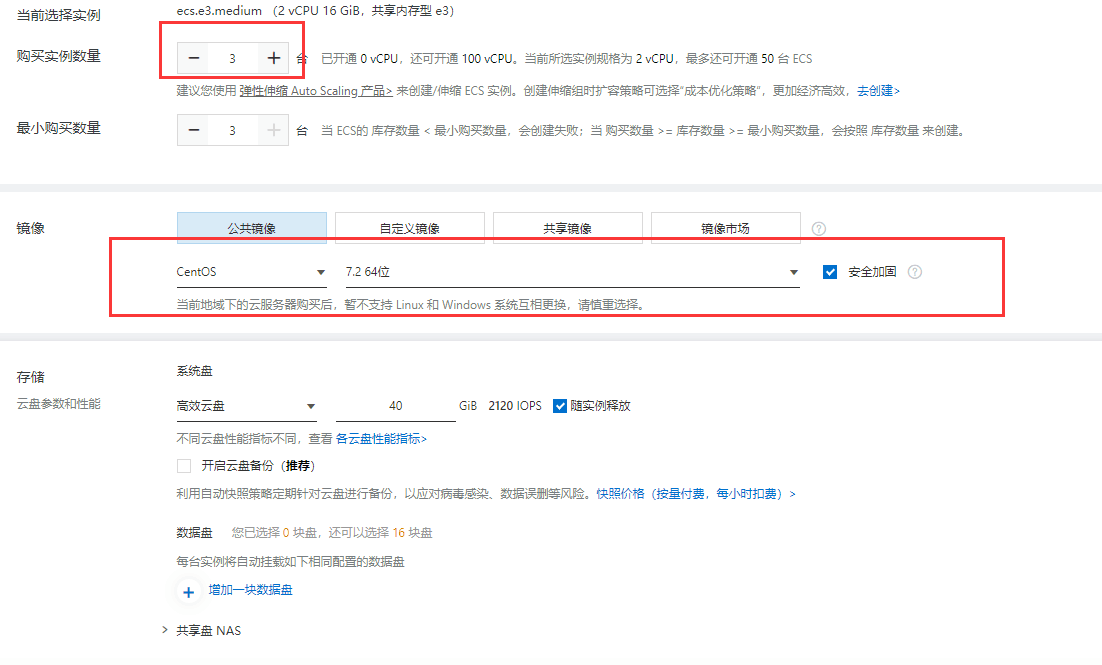

• 按量量付费虚拟机
• CentOS7.2操作系统，2核16G最低配置(8G 勉强也可以)

2.2当前机器配置hosts文件

• Window: C:\windows\System32\drivers\etc\hosts

• ps : hosts文件里面只放公网ip

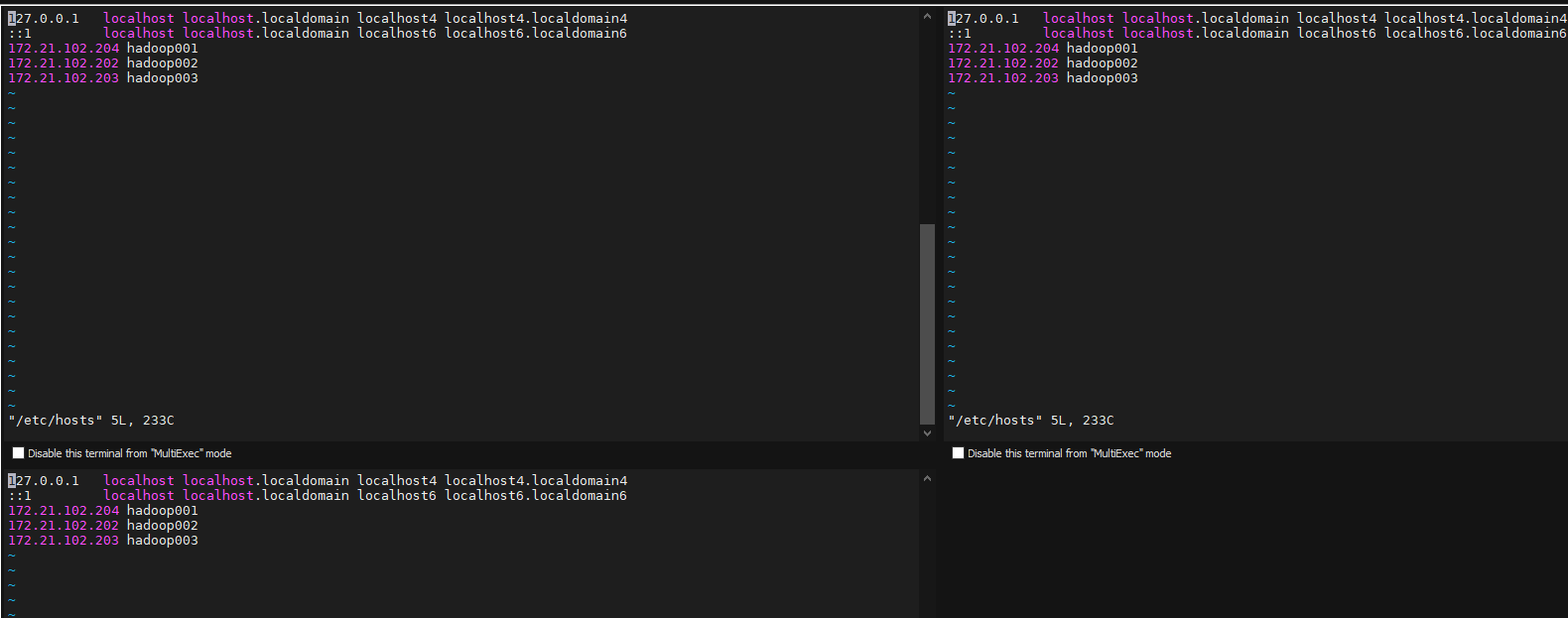

2.3设置所有节点的hosts文件

• 查看主机之前能否ping通

2.4关闭所有节点的防⽕火墙及清空规则

2.5关闭所有节点的selinux

阿里云默认是disabled的

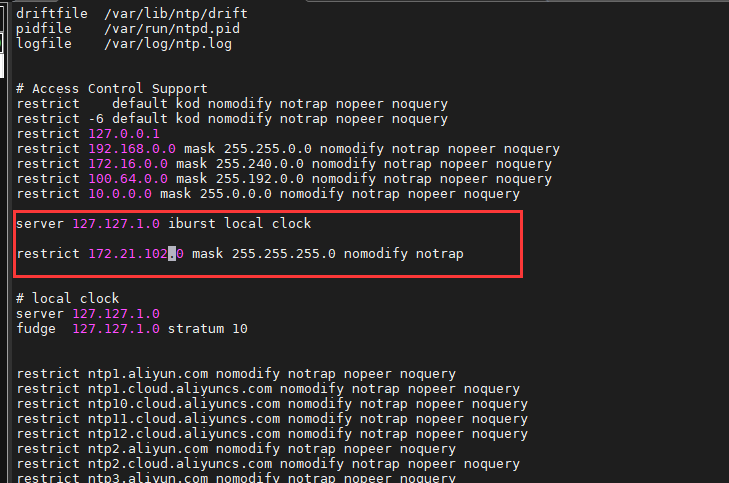

2.6设置所有节点的时区⼀一致及时钟同步 (云主机不用配置)

• 增加

• #当外部时间不不可⽤用时，可使⽤用本地硬件时间server 127.127.1.0 iburst local clock#允许哪些网段的机器来同步时间restrict 172.21.102.0 mask 255.255.255.0 nomodify notrap

2.7每个节点部署JDK

• 先把所有软件上传到 hadoop001当中
• [root@hadoop001 CDH6.3.1]# lltotal 4131080rw-r--r-- 1 root root 2083878000 Jun 28 16:26 CDH-6.3.1-1.cdh6.3.1.p0.1470567-el7.parcelrw-r--r-- 1 root root 40 Jun 28 16:26 CDH-6.3.1-1.cdh6.3.1.p0.1470567-el7.parcel.sha1rw-r--r-- 1 root root 1411444147 Jun 28 16:28 cm6.3.1-redhat7.tar.gzrw-r--r-- 1 root root 185646832 Jun 28 16:28 jdk-8u181-linux-x64.tar.gzrw-r--r-- 1 root root 33887 Jun 28 16:28 manifest.jsonrw-r--r-- 1 root root 548193637 Jun 28 16:29 mysql-5.7.11-linux-glibc2.5-x86_64.tar.gzrw-r--r-- 1 root root 1007502 Jun 28 16:29 mysql-connector-java-5.1.47.jar

• 其他节点创建目录
• [root@hadoop002 ~]# mkdir CDH6.3.1[root@hadoop003 ~]# mkdir CDH6.3.1

• 传输JDK
• [root@hadoop001 CDH6.3.1]# scp jdk-8u181-linux-x64.tar.gz hadoop002:/root/CDH6.3.1/[root@hadoop001 CDH6.3.1]# scp jdk-8u181-linux-x64.tar.gz hadoop003:/root/CDH6.3.1/# 输入yes和root账号的密码

• 所有节点创建目录
• mkdir /usr/java

• 所有节点解压JDK包
• tar -xzvf jdk-8u181-linux-x64.tar.gz -C /usr/java

• 所有节点修正用户和用户组
• cd /usr/javachown -R root:root /usr/java/jdk1.8.0_181

• 所有节点配置环境变量
• echo "export JAVA_HOME=/usr/java/jdk1.8.0_181" >> /etc/profileecho "export PATH=/usr/java/jdk1.8.0_181/bin:${PATH}" >> /etc/profilesource /etc/profilewhich java

3.离线部署MySQL5.7

我们选择hadoop001为我们的mysql节点

• 解压
• sudo tar -xzvf mysql-5.7.11-linux-glibc2.5-x86_64.tar.gz -C /usr/local

• 重新命名
• cd /usr/localmv mysql-5.7.11-linux-glibc2.5-x86_64 mysql

• 修正用户组
• chown -R root:root /usr/local/mysql/

• 创建文件夹
• mkdir mysql/arch/ mysql/data/ mysql/tmp/

• 创建配置文件
• vi /etc/my.cnf

把默认的内容删掉 替换如下

• [client]port = 3306socket = /usr/local/mysql/data/mysql.sockdefault-character-set=utf8mb4[mysqld]port = 3306socket = /usr/local/mysql/data/mysql.sockskip-slave-startskip-external-lockingkey_buffer_size = 256Msort_buffer_size = 2Mread_buffer_size = 2Mread_rnd_buffer_size = 4Mquery_cache_size= 32Mmax_allowed_packet = 16Mmyisam_sort_buffer_size=128Mtmp_table_size=32Mtable_open_cache = 512thread_cache_size = 8wait_timeout = 86400interactive_timeout = 86400max_connections = 600# Try number of CPU's*2 for thread_concurrency#thread_concurrency = 32 #isolation level and default engine default-storage-engine = INNODBtransaction-isolation = READ-COMMITTEDserver-id = 1739basedir = /usr/local/mysqldatadir = /usr/local/mysql/datapid-file = /usr/local/mysql/data/hostname.pid#open performance schemalog-warningssysdate-is-nowbinlog_format = ROWlog_bin_trust_function_creators=1log-error = /usr/local/mysql/data/hostname.errlog-bin = /usr/local/mysql/arch/mysql-binexpire_logs_days = 7innodb_write_io_threads=16relay-log = /usr/local/mysql/relay_log/relay-logrelay-log-index = /usr/local/mysql/relay_log/relay-log.indexrelay_log_info_file= /usr/local/mysql/relay_log/relay-log.infolog_slave_updates=1gtid_mode=OFFenforce_gtid_consistency=OFF# slaveslave-parallel-type=LOGICAL_CLOCKslave-parallel-workers=4master_info_repository=TABLErelay_log_info_repository=TABLErelay_log_recovery=ON#other logs#general_log =1#general_log_file = /usr/local/mysql/data/general_log.err#slow_query_log=1#slow_query_log_file=/usr/local/mysql/data/slow_log.err#for replication slavesync_binlog = 500#for innodb options innodb_data_home_dir = /usr/local/mysql/data/innodb_data_file_path = ibdata1:1G;ibdata2:1G:autoextendinnodb_log_group_home_dir = /usr/local/mysql/archinnodb_log_files_in_group = 4innodb_log_file_size = 1Ginnodb_log_buffer_size = 200M#根据生产需要，调整pool size innodb_buffer_pool_size = 2G#innodb_additional_mem_pool_size = 50M #deprecated in 5.6tmpdir = /usr/local/mysql/tmpinnodb_lock_wait_timeout = 1000#innodb_thread_concurrency = 0innodb_flush_log_at_trx_commit = 2innodb_locks_unsafe_for_binlog=1#innodb io features: add for mysql5.5.8performance_schemainnodb_read_io_threads=4innodb-write-io-threads=4innodb-io-capacity=200#purge threads change default(0) to 1 for purgeinnodb_purge_threads=1innodb_use_native_aio=on#case-sensitive file names and separate tablespaceinnodb_file_per_table = 1lower_case_table_names=1[mysqldump]quickmax_allowed_packet = 128M[mysql]no-auto-rehashdefault-character-set=utf8mb4[mysqlhotcopy]interactive-timeout[myisamchk]key_buffer_size = 256Msort_buffer_size = 256Mread_buffer = 2Mwrite_buffer = 2M

• 创建用户组及用户
• groupadd -g 101 dbauseradd -u 514 -g dba -G root -d /usr/local/mysql mysqladmin

• copy配置文件
• cp /etc/skel/.* /usr/local/mysql

• 切换用户
• su - mysqladminll -a #查看文件是否copyexit

• 编辑配置文件
• vi ./bashrc
• # .bashrc# Source global definitionsif [ -f /etc/bashrc ]; then . /etc/bashrcfi# Uncomment the following line if you don't like systemctl's auto-paging feature:# export SYSTEMD_PAGER=export MYSQL_BASE=/usr/local/mysqlexport PATH=${MYSQL_BASE}/bin:$PATH

• 赋予权限 记得切换为root
• [root@hadoop001 local]# chown mysqladmin:dba /etc/my.cnf[root@hadoop001 local]# chmod 640 /etc/my.cnf[root@hadoop001 local]# chown -R mysqladmin:dba /usr/local/mysql[root@hadoop001 local]# chmod -R 755 /usr/local/mysql

• 配置服务和开机自启动
• [root@hadoop001 local]# cd /usr/local/mysql#将服务文件拷贝到init.d下，并重命名为mysql[root@hadoop001 mysql]# cp support-files/mysql.server /etc/rc.d/init.d/mysql#赋予可执行权限[root@hadoop001 mysql]# chmod +x /etc/rc.d/init.d/mysql#删除服务[root@hadoop001 mysql]# chkconfig --del mysql#添加服务[root@hadoop001 mysql]# chkconfig --add mysql

• 安装libaio及安装mysql的初始db
• [hejiahao@hadoop001 mysql]$ sudo yum -y install libaio# 初始化启动[root@hadoop001 mysql]# bin/mysqld \> --defaults-file=/etc/my.cnf \> --user=mysqladmin \> --basedir=/usr/local/mysql/ \> --datadir=/usr/local/mysql/data/ \> --initialize[root@hadoop001 mysql]#[root@hadoop001 mysql]#[root@hadoop001 mysql]# cd data/# 查看临时密码[root@hadoop001 data]# cat hostname.err |grep password2020-06-28T10:00:55.318092Z 1 [Note] A temporary password is generated for root@ localhost: Wwh*do<PE1sH[root@hadoop001 data]#

• 启动并登陆
• su - mysqladminservice mysql start
• mysql -uroot -pWwh*do<PE1sH

• 重置密码
• alter user root@localhost identified by 'hadoop';GRANT ALL PRIVILEGES ON *.* TO 'root'@'%' IDENTIFIED BY 'hadoop' ;flush privileges;exit;mysql> show databases;ERROR 1820 (HY000): You must reset your password using ALTER USER statement before executing this statement.mysql> alter user root@localhost identified by 'hadoop';Query OK, 0 rows affected (0.00 sec)mysql> GRANT ALL PRIVILEGES ON *.* TO 'root'@'%' IDENTIFIED BY 'hadoop' ;Query OK, 0 rows affected, 1 warning (0.00 sec)mysql> flush privileges;Query OK, 0 rows affected (0.00 sec)mysql> exit;Bye[mysqladmin@hadoop001 ~]$# 再次登陆mysql -uroot -phadoop

• 创建CDH的元数据库和⽤用户、amon服务的数据库及⽤用户
• create database cmf DEFAULT CHARACTER SET utf8;grant all on cmf.* TO 'cmf'@'%' IDENTIFIED BY 'cmf';create database amon DEFAULT CHARACTER SET utf8;grant all on amon.* TO 'amon'@'%' IDENTIFIED BY 'amon';flush privileges;

• hadoop001节点部署mysql jdbc jar
• cd ~mkdir -p /usr/share/java/# 不要版本号cp mysql-connector-java-5.1.47.jar /usr/share/java/mysql-connector-java.jar

4.CDH部署

4.1离线部署cm server及agent

• 解压rpm包并安装server
• [root@hadoop001 CDH6.3.1]# tar -xzvf cm6.3.1-redhat7.tar.gz
• cd cm6.3.1cd RPMS/cd x86_64/[root@hadoop001 x86_64]# lltotal 1380424rw-r--r-- 1 2001 2001 10483568 Sep 25 2019 cloudera-manager-agent-6.3.1-1466458.el7.x86_64.rpmrw-r--r-- 1 2001 2001 1203832464 Sep 25 2019 cloudera-manager-daemons-6.3.1-1466458.el7.x86_64.rpmrw-r--r-- 1 2001 2001 11488 Sep 25 2019 cloudera-manager-server-6.3.1-1466458.el7.x86_64.rpm# 官方提供的数据库 (不用) : 因为你不知道你安装在哪里 也不知道密码rw-r--r-- 1 2001 2001 10996 Sep 25 2019 cloudera-manager-server-db-2-6.3.1-1466458.el7.x86_64.rpmrw-r--r-- 1 2001 2001 14209868 Sep 25 2019 enterprise-debuginfo-6.3.1-1466458.el7.x86_64.rpmrw-rw-r-- 1 2001 2001 184988341 Sep 25 2019 oracle-j2sdk1.8-1.8.0+update181-1.x86_64.rpm[root@hadoop001 x86_64]#server需要安装:cloudera-manager-daemons-6.3.1-1466458.el7.x86_64.rpmcloudera-manager-server-6.3.1-1466458.el7.x86_64.rpmagent需要安装:cloudera-manager-daemons-6.3.1-1466458.el7.x86_64.rpmcloudera-manager-agent-6.3.1-1466458.el7.x86_64.rpm
• # 裸装 不用yum源rpm -ivh cloudera-manager-daemons-6.3.1-1466458.el7.x86_64.rpm --nodeps --forcerpm -ivh cloudera-manager-server-6.3.1-1466458.el7.x86_64.rpm --nodeps --force[root@hadoop001 x86_64]# rpm -ivh cloudera-manager-daemons-6.3.1-1466458.el7.x86_64.rpm --nodeps --forcewarning: cloudera-manager-daemons-6.3.1-1466458.el7.x86_64.rpm: Header V3 RSA/SHA256 Signature, key ID b0b19c9f: NOKEYPreparing... ################################# [100%]Updating / installing... 1:cloudera-manager-daemons-6.3.1-14################################# [100%][root@hadoop001 x86_64]# rpm -ivh cloudera-manager-server-6.3.1-1466458.el7.x86_64.rpm --nodeps --forcewarning: cloudera-manager-server-6.3.1-1466458.el7.x86_64.rpm: Header V3 RSA/SHA256 Signature, key ID b0b19c9f: NOKEYPreparing... ################################# [100%]Updating / installing... 1:cloudera-manager-server-6.3.1-146####################### ########## [100%]Created symlink from /etc/systemd/system/multi-user.target.wants/cloudera-scm-server.service to /usr/lib/systemd/system/cloudera-scm-server.service.[root@hadoop001 x86_64]#[root@hadoop001 cloudera-scm-server]# cd /etc/cloudera-scm-server/[root@hadoop001 cloudera-scm-server]# lltotal 20rw-r--r-- 1 root root 8197 Sep 25 2019 cmSubCaCert.profilerw------- 1 cloudera-scm cloudera-scm 757 Sep 25 2019 db.propertiesrw-r--r-- 1 root root 3027 Sep 25 2019 log4j.properties[root@hadoop001 cloudera-scm-server]#
• vi db.properties# Copyright (c) 2012 Cloudera, Inc. All rights reserved.## This file describes the database connection.## The database type# Currently 'mysql', 'postgresql' and 'oracle' are valid databases.com.cloudera.cmf.db.type=mysql# The database host# If a non standard port is needed, use 'hostname:port'com.cloudera.cmf.db.host=hadoop001:3306# The database namecom.cloudera.cmf.db.name=cmf# The database usercom.cloudera.cmf.db.user=cmf# The database user's passwordcom.cloudera.cmf.db.password=cmf# The db setup type# After fresh install it is set to INIT# and will be changed post config.# If scm-server uses Embedded DB then it is set to EMBEDDED# If scm-server uses External DB then it is set to EXTERNALcom.cloudera.cmf.db.setupType=EXTERNAL

• 启动server
• service cloudera-scm-server start# 需要等待一分钟

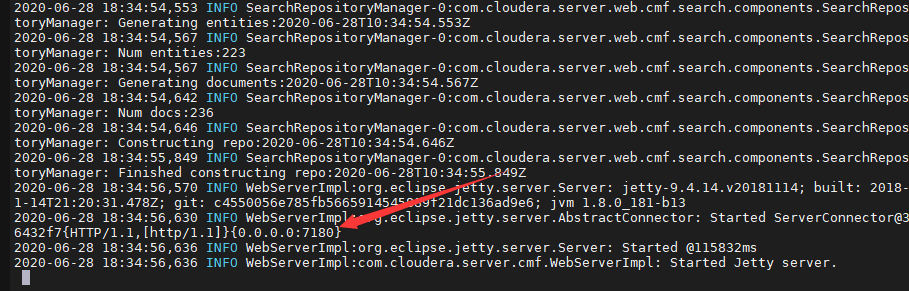

• # 去 /var/log/cloudera-scm-server/ 下查看日志tail -F /var/log/cloudera-scm-server/cloudera-scm-server.log

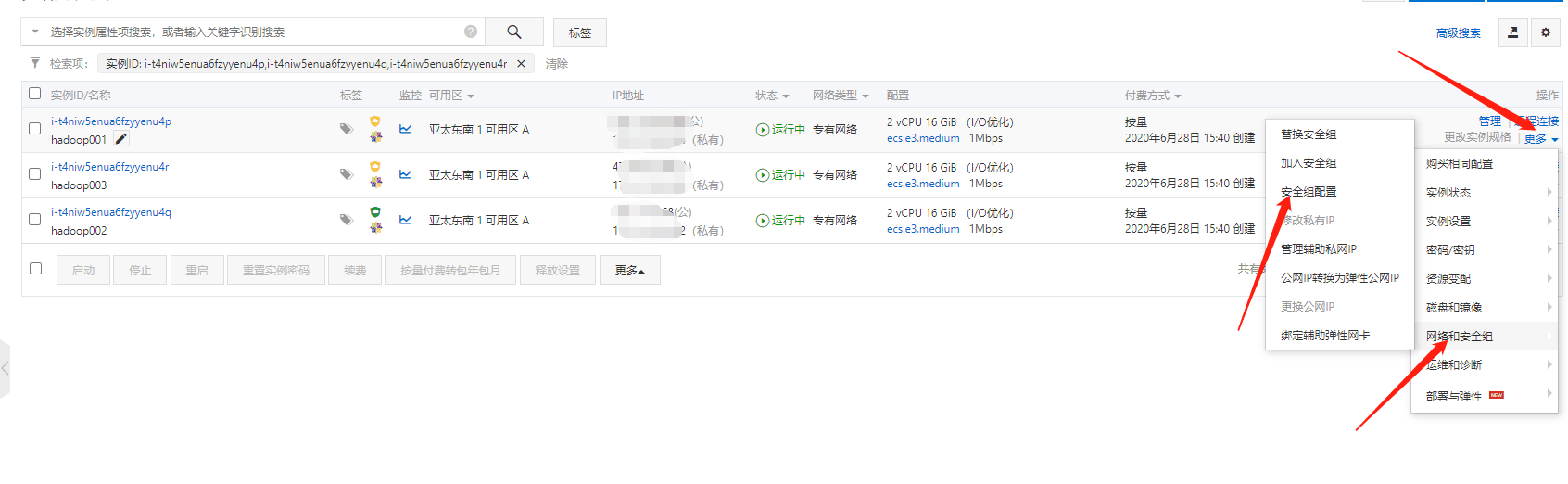

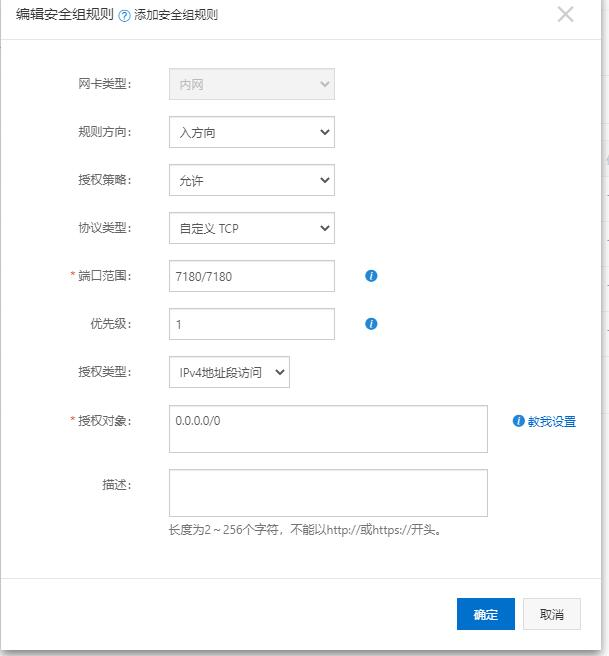

• 去阿里云开放7180端口

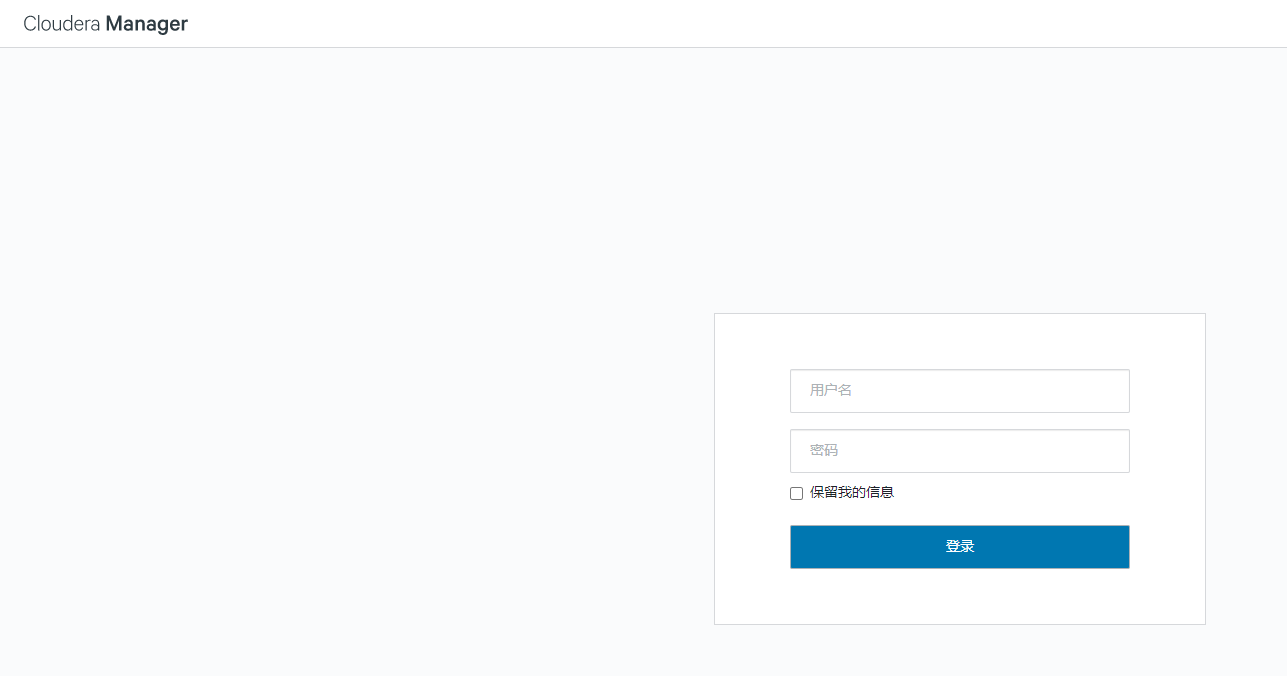

• 进入浏览器
• 出现登陆页面后不要动

• hadoop001继续安装rpm包 先前安装了daemons和server
• cd /root/CDH6.3.1/cm6.3.1/RPMS/x86_64[root@hadoop001 x86_64]# rpm -ivh cloudera-manager-agent-6.3.1-1466458.el7.x86_64.rpm --nodeps --forcewarning: cloudera-manager-agent-6.3.1-1466458.el7.x86_64.rpm: Header V3 RSA/SHA256 Signature, key ID b0b19c9f: NOKEYPreparing... ################################# [100%]Updating / installing... 1:cloudera-manager-agent-6.3.1-1466################################# [100%]Created symlink from /etc/systemd/system/multi-user.target.wants/cloudera-scm-agent.service to /usr/lib/systemd/system/cloudera-scm-agent.service.Created symlink from /etc/systemd/system/multi-user.target.wants/supervisord.service to /usr/lib/systemd/system/supervisord.service.[root@hadoop001 x86_64]#

• 编辑文件
• vi /etc/cloudera-scm-agent/config.ini修改server_host=hadoop001

• 其他的机器安装rpm包
• # 先传输软件包scp cloudera-manager-agent-6.3.1-1466458.el7.x86_64.rpm hadoop002:/root/CDH6.3.1/scp cloudera-manager-agent-6.3.1-1466458.el7.x86_64.rpm hadoop003:/root/CDH6.3.1/scp cloudera-manager-daemons-6.3.1-1466458.el7.x86_64.rpm hadoop002:/root/CDH6.3.1/scp cloudera-manager-daemons-6.3.1-1466458.el7.x86_64.rpm hadoop003:/root/CDH6.3.1/# hadoop002 和 hadoop003 安装rpm -ivh cloudera-manager-daemons-6.3.1-1466458.el7.x86_64.rpm --nodeps --forcerpm -ivh cloudera-manager-agent-6.3.1-1466458.el7.x86_64.rpm --nodeps --force

• 其他的机器编辑文件 hadoop002 和 hadoop003
• vi /etc/cloudera-scm-agent/config.ini修改server_host=hadoop001

• 所有机器启动 agent
• service cloudera-scm-agent start

5.浏览器登陆

默认账号密码

admin

admin

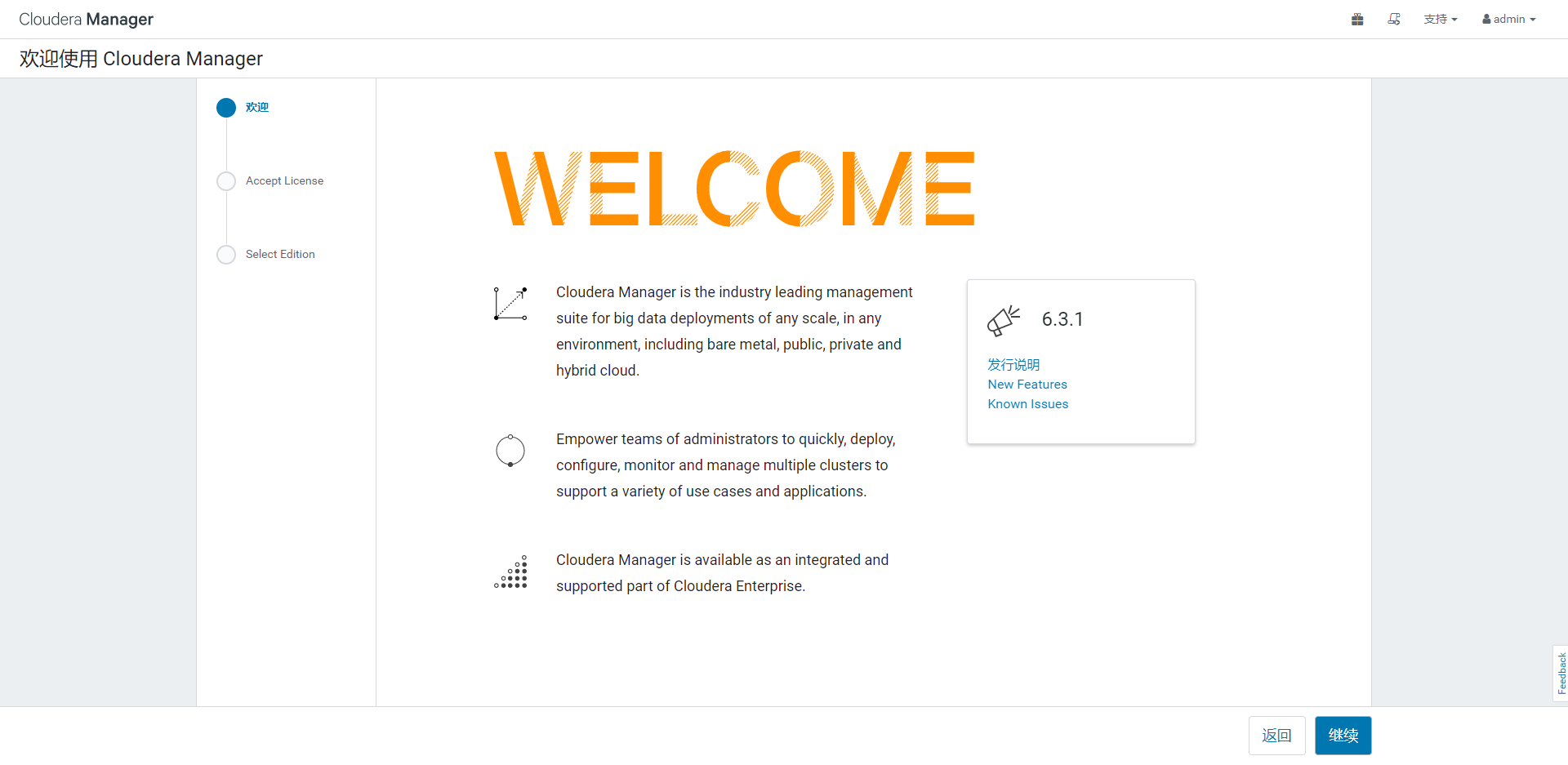

5.1进入欢迎页面

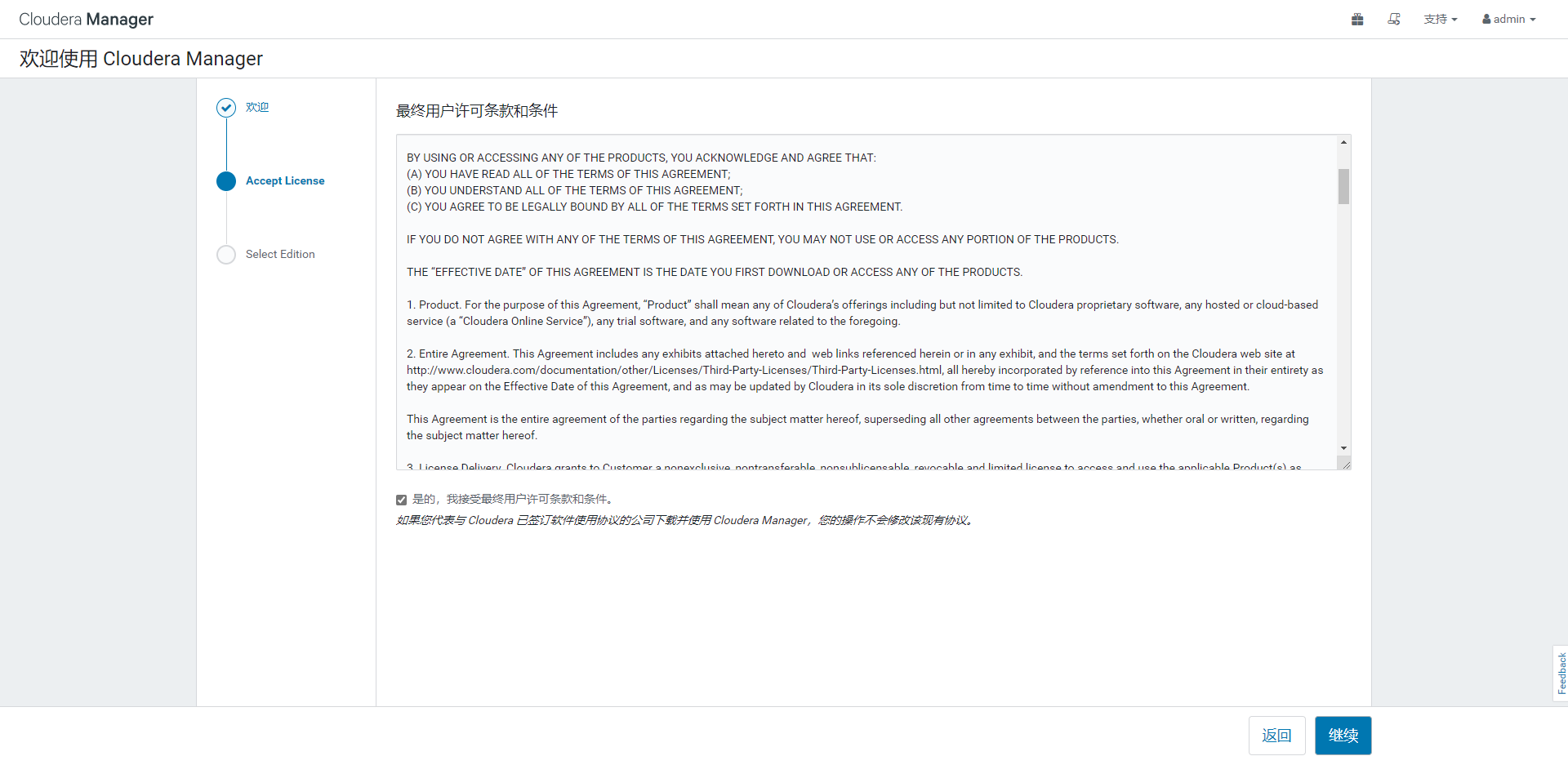

5.2同意许可证

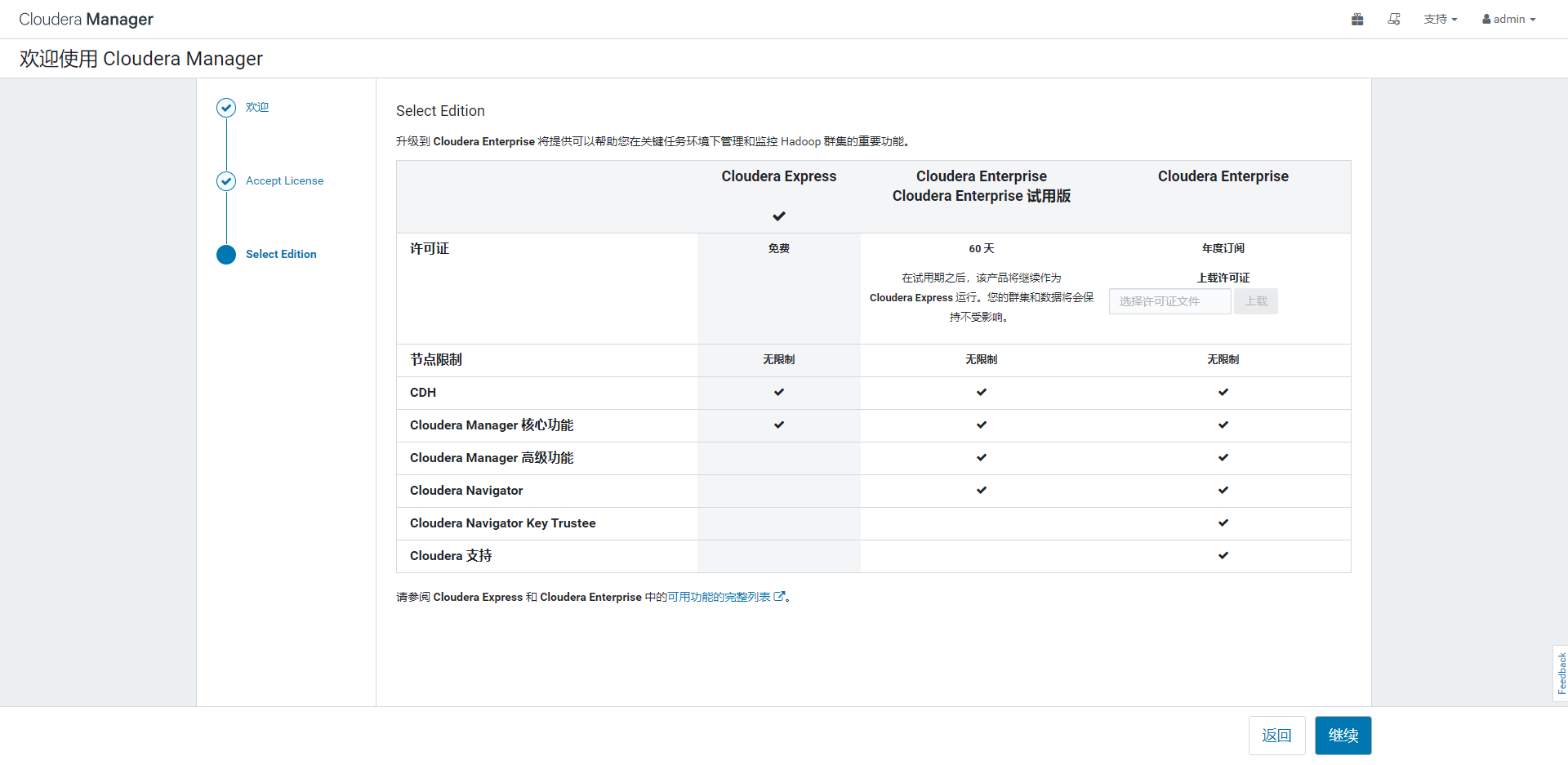

5.3选择免费版本

5.4集群安装

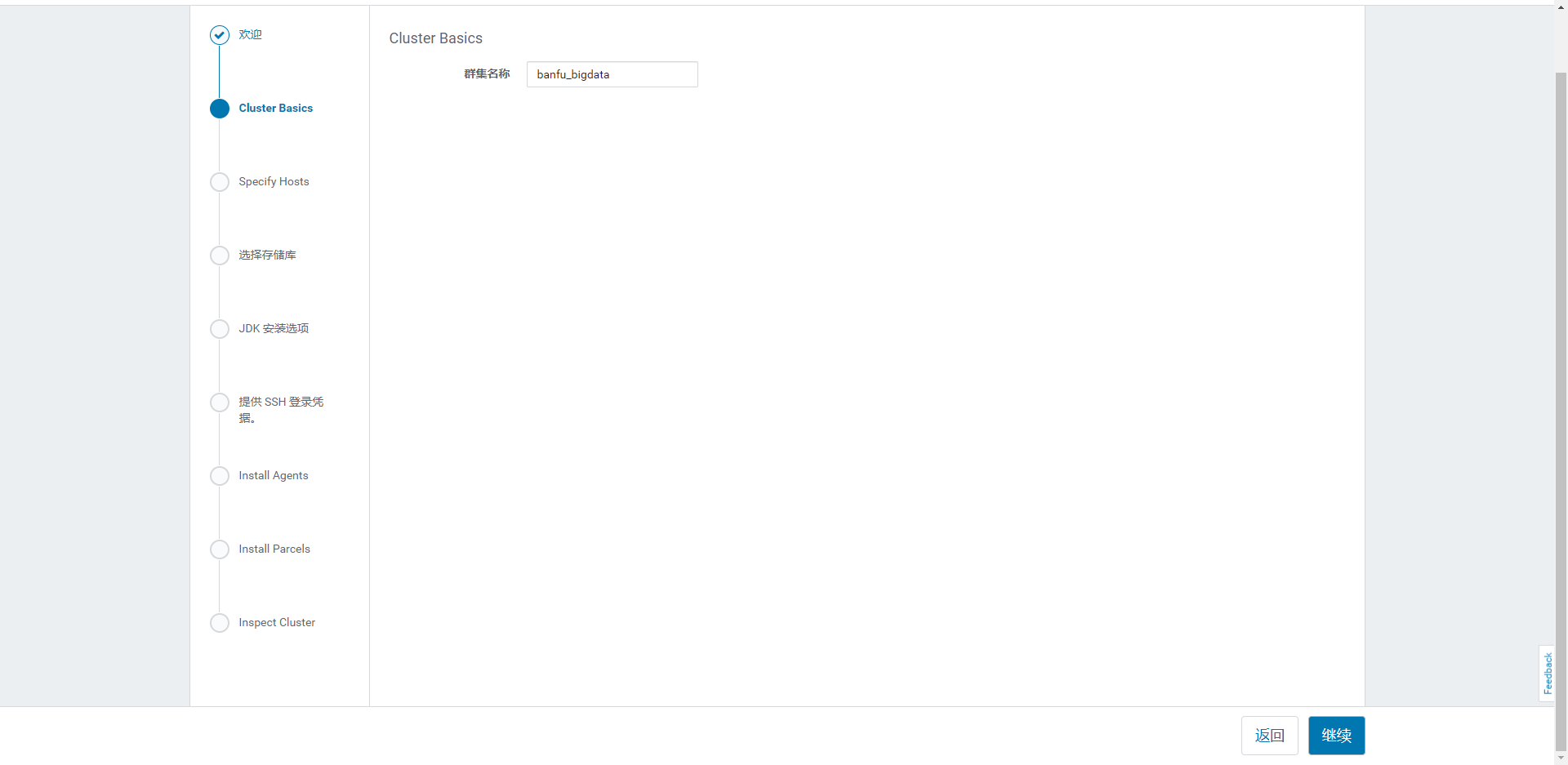

5.5设置集群名称

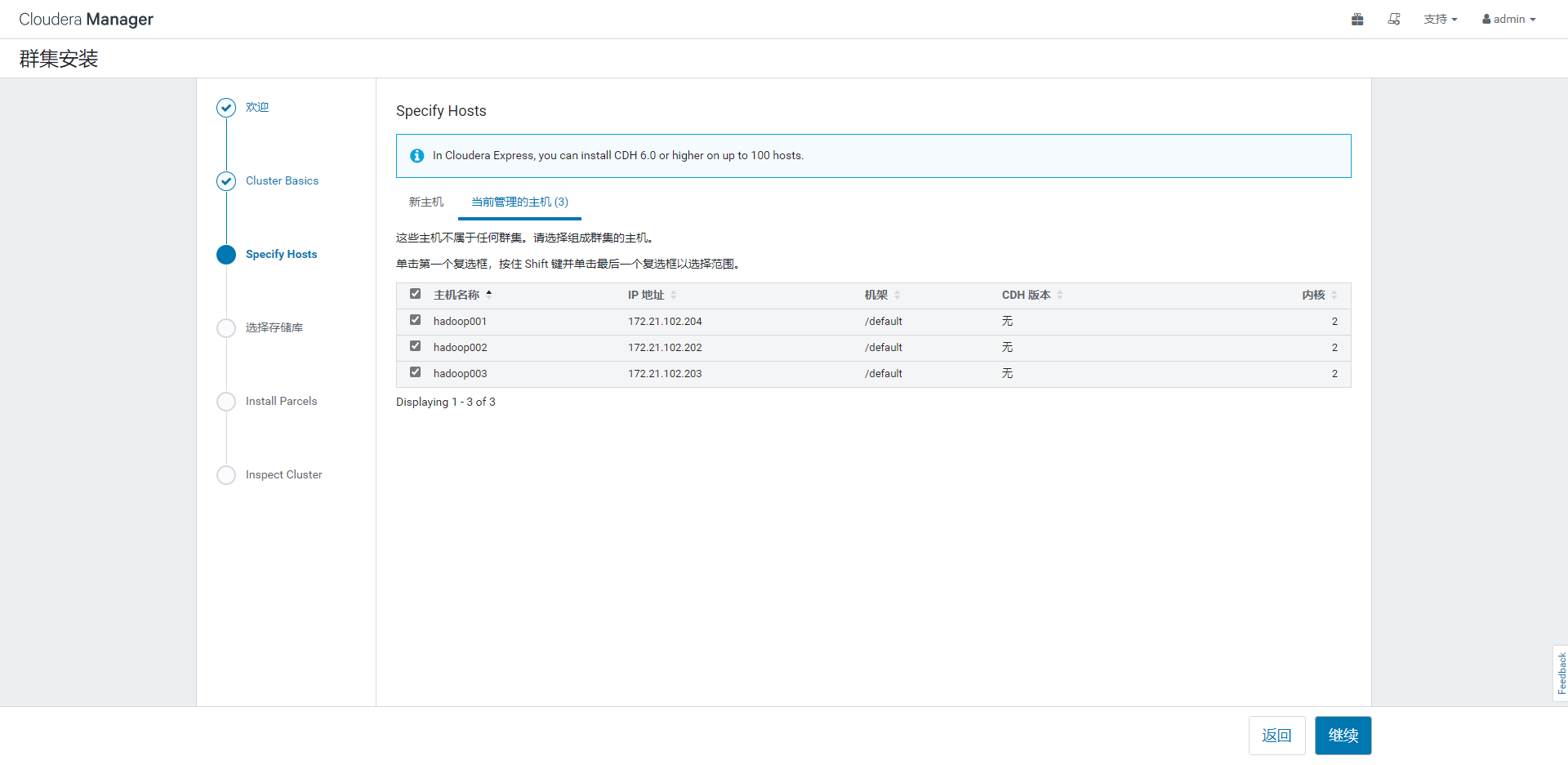

5.6选择主机

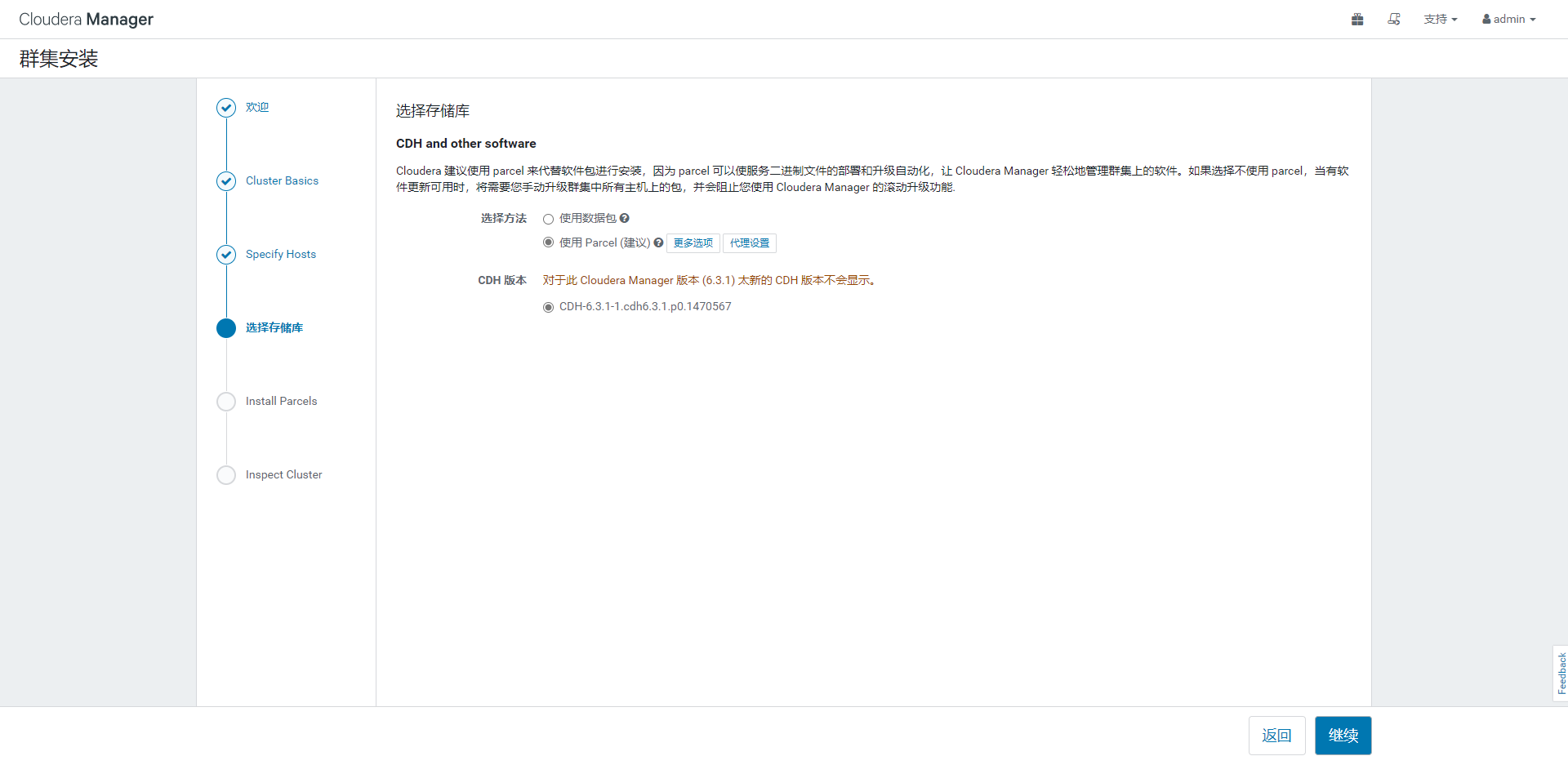

5.7选择存储库

• 配置
• cd CDH6.3.1/yum install -y httpdmkdir /var/www/html/cdh6_parcel[root@hadoop001 CDH6.3.1]# mv CDH-6.3.1-1.cdh6.3.1.p0.1470567-el7.parcel /var/www/html/cdh6_parcel/# 这里记得要不sha1的1去掉[root@hadoop001 CDH6.3.1]# mv CDH-6.3.1-1.cdh6.3.1.p0.1470567-el7.parcel.sha1 /var/www/html/cdh6_parcel/CDH-6.3.1-1.cdh6.3.1.p0.1470567-el7.parcel.sha[root@hadoop001 CDH6.3.1]# mv manifest.json /var/www/html/cdh6_parcel/[root@hadoop001 CDH6.3.1]#[root@hadoop001 CDH6.3.1]# cd /var/www/html/cdh6_parcel/[root@hadoop001 cdh6_parcel]# lltotal 2035084rw-r--r-- 1 root root 2083878000 Jun 28 16:26 CDH-6.3.1-1.cdh6.3.1.p0.1470567-el7.parcelrw-r--r-- 1 root root 40 Jun 28 16:26 CDH-6.3.1-1.cdh6.3.1.p0.1470567-el7.parcel.sharw-r--r-- 1 root root 33887 Jun 28 16:28 manifest.json[root@hadoop001 cdh6_parcel]#

• 启动httpd 服务
• [root@hadoop001 CDH6.3.1]# service httpd startRedirecting to /bin/systemctl start httpd.service[root@hadoop001 CDH6.3.1]#

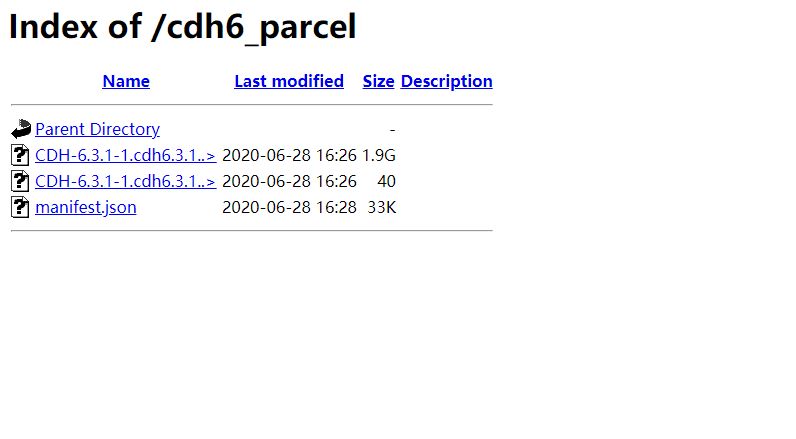

• 记得阿里云开放80端口 浏览器

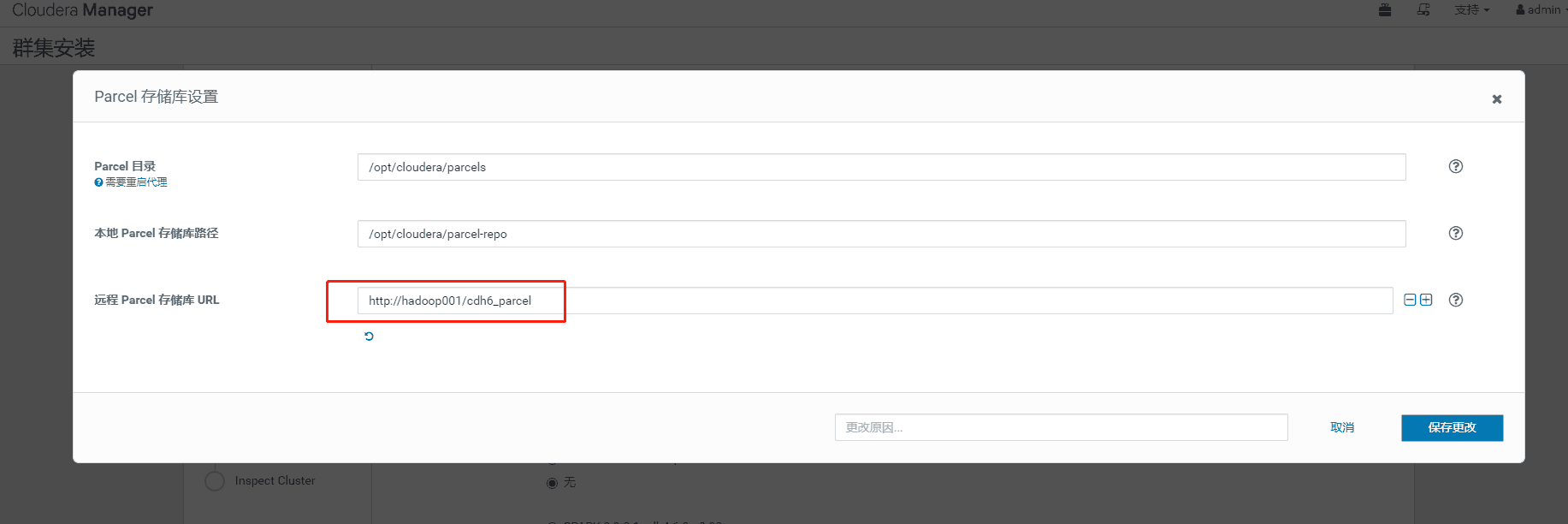

• 设置路径

• 这时候页面自动找到了我们的parcel包了

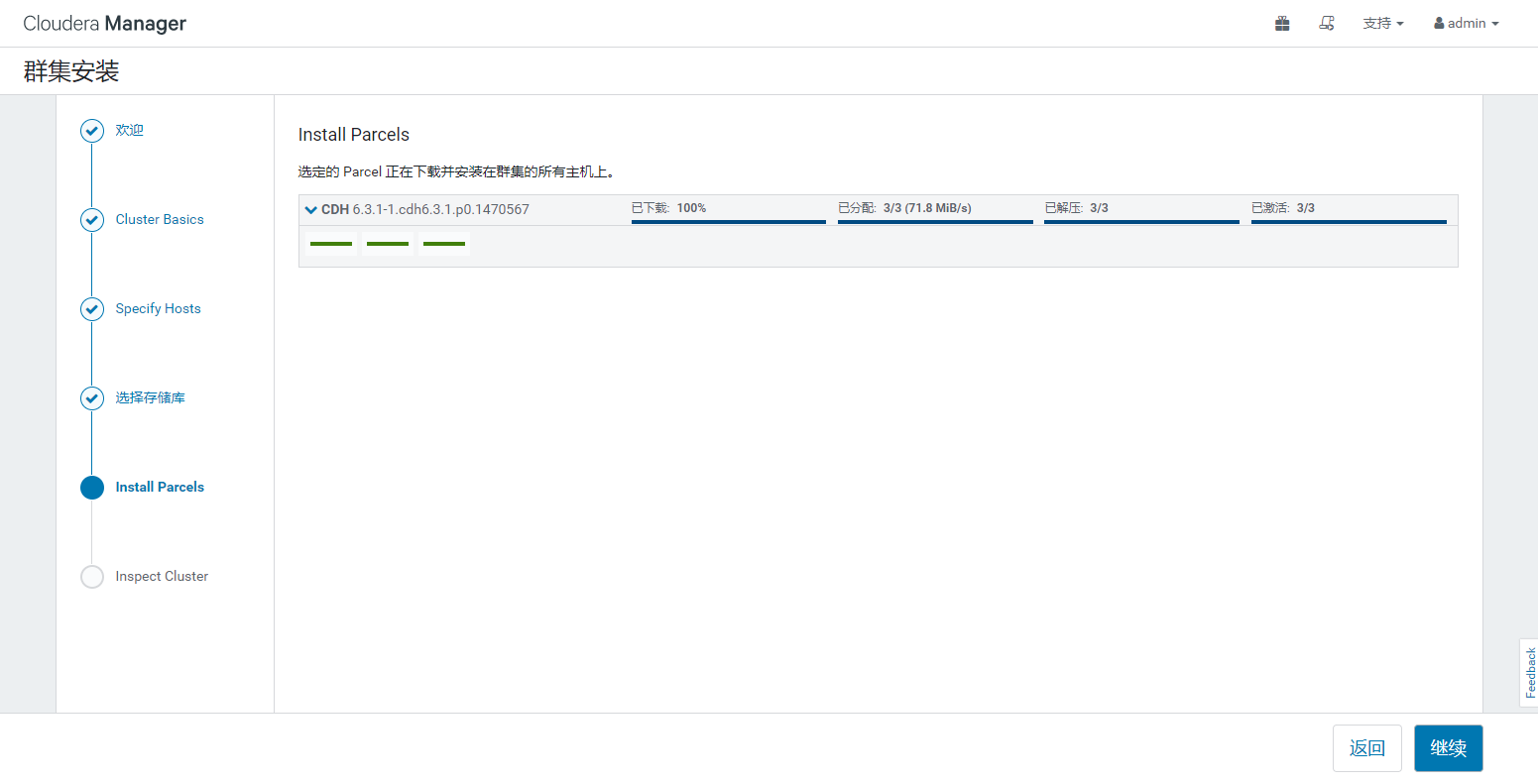

5.8安装 Parcels

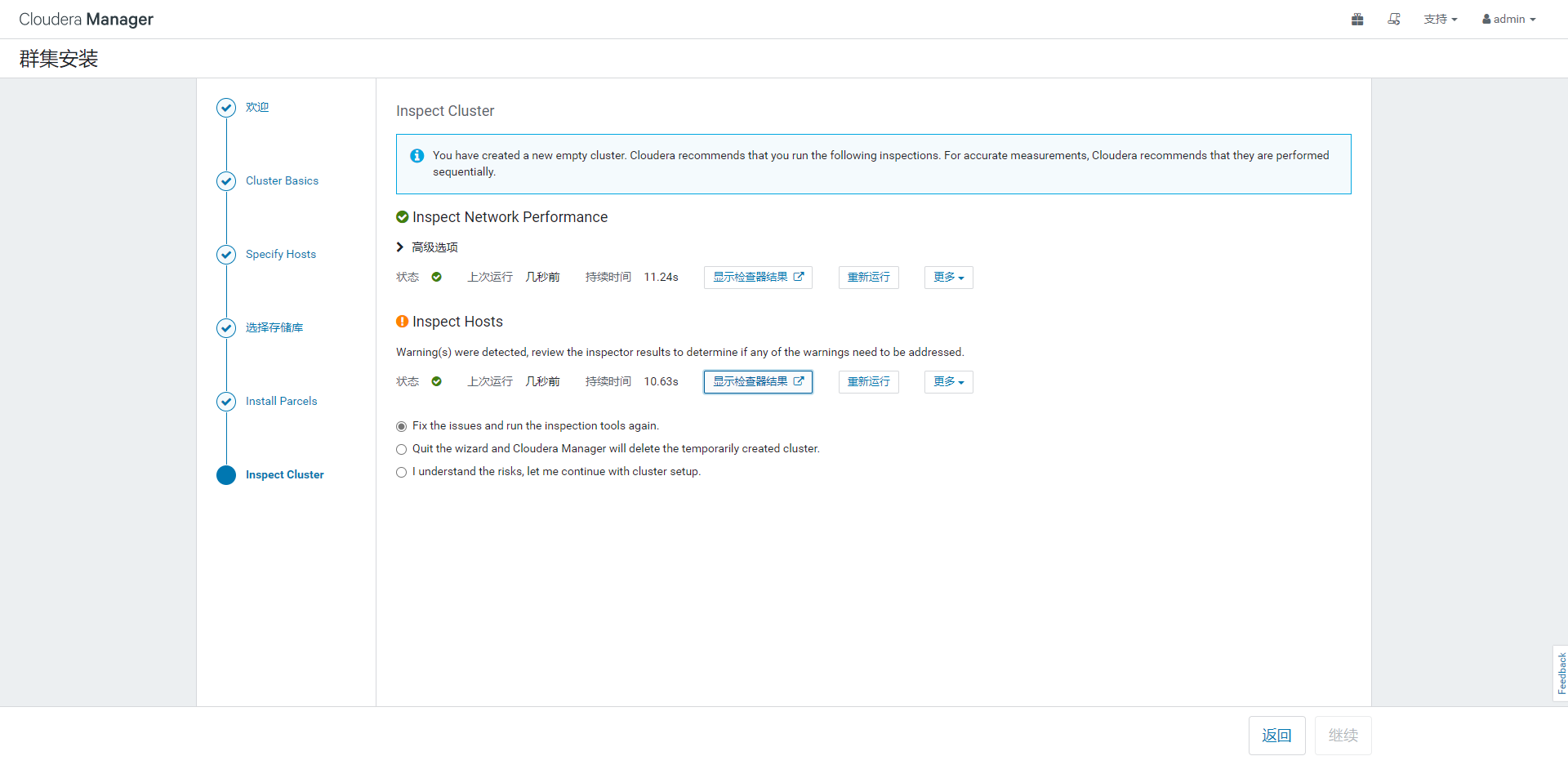

5.9集群检测

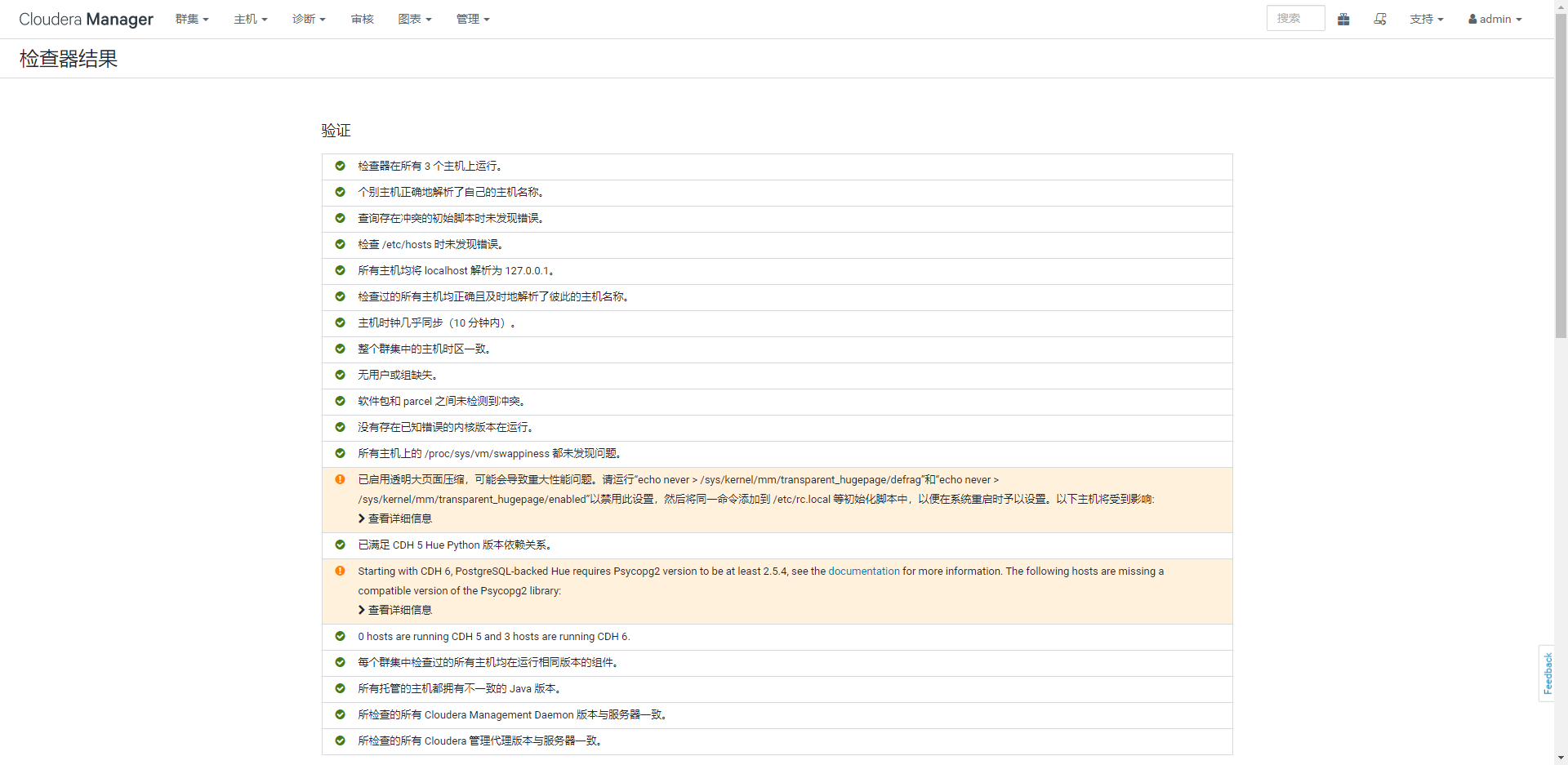

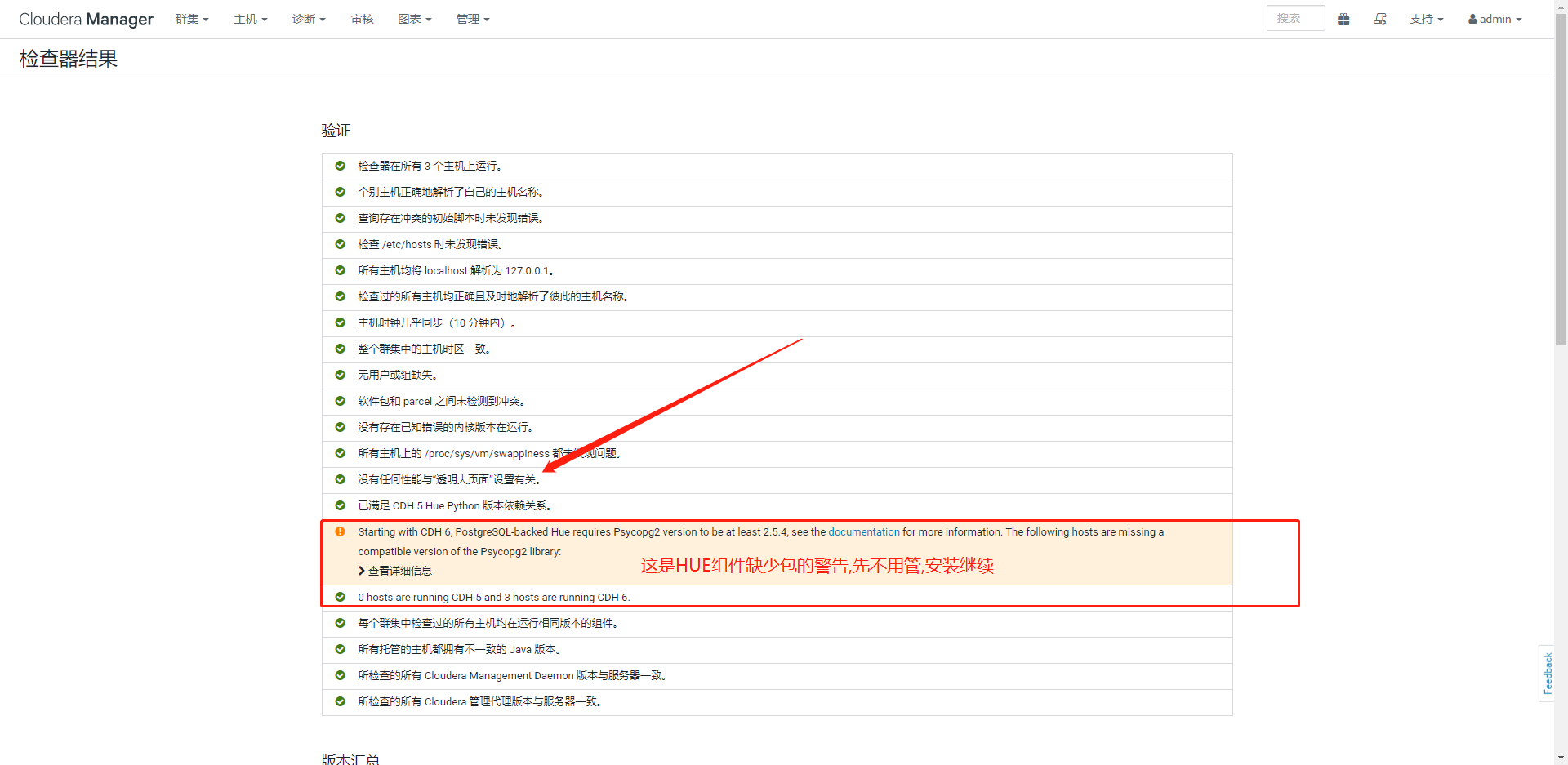

• 显示检查器结果

• 所有机器运行
• echo never > /sys/kernel/mm/transparent_hugepage/defragecho never > /sys/kernel/mm/transparent_hugepage/enabled

• 回到页面选择忽略警告,再点击继续

5.10群集设置

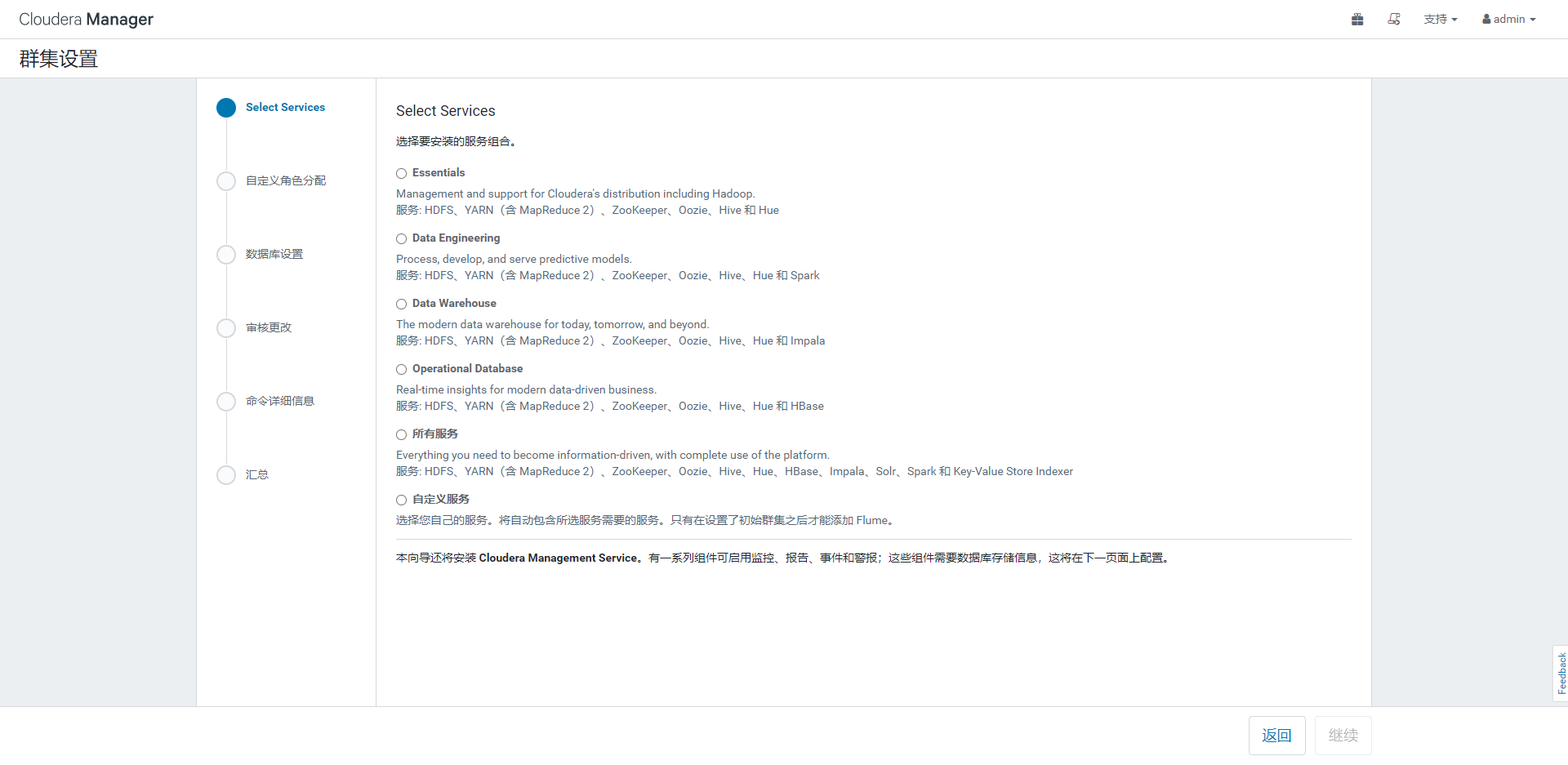

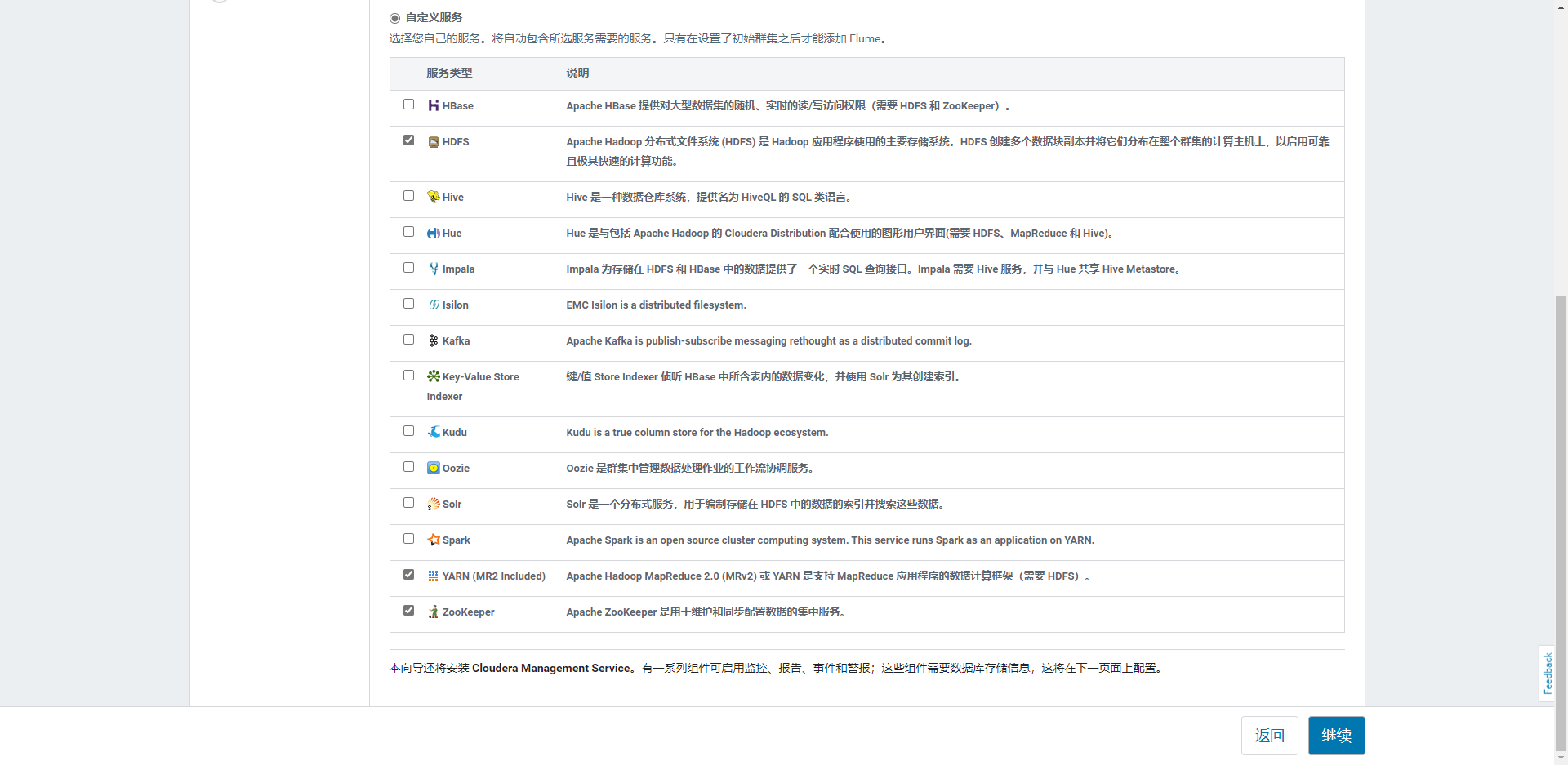

• 选择自定义服务
• 先选择 ZooKeeper , YARN , HDFS

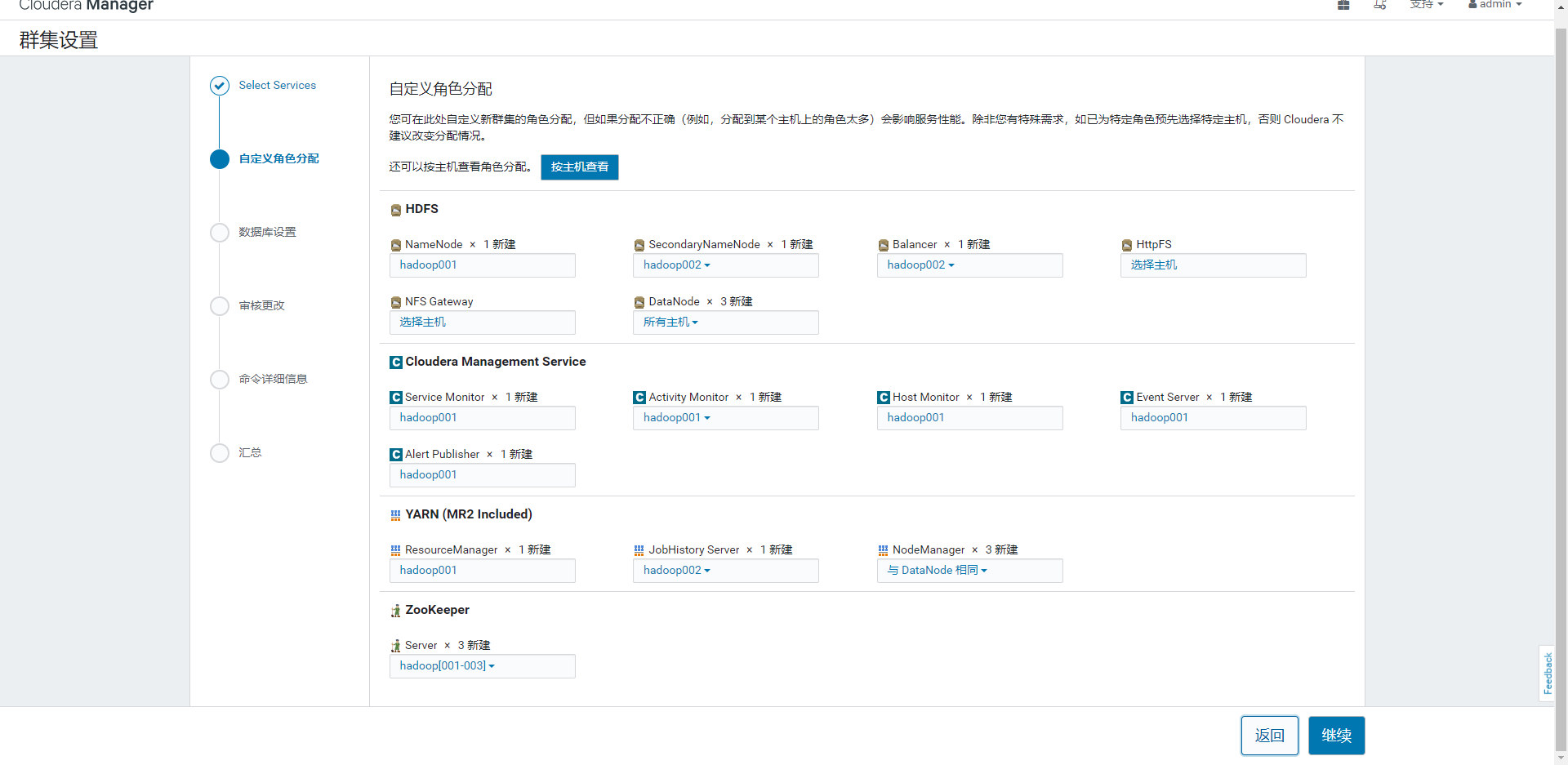

5.11自定义角色分配

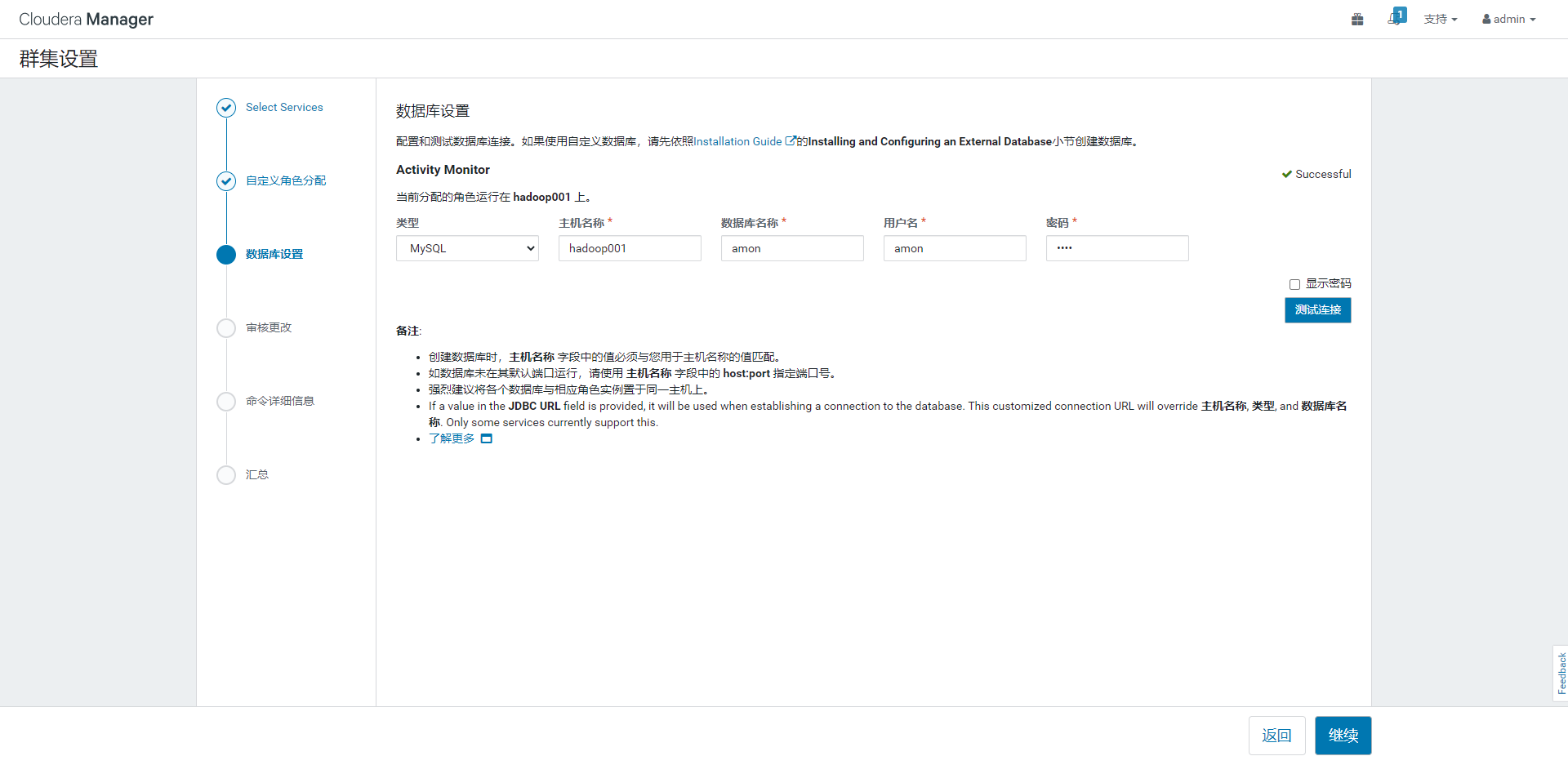

5.12数据库设置

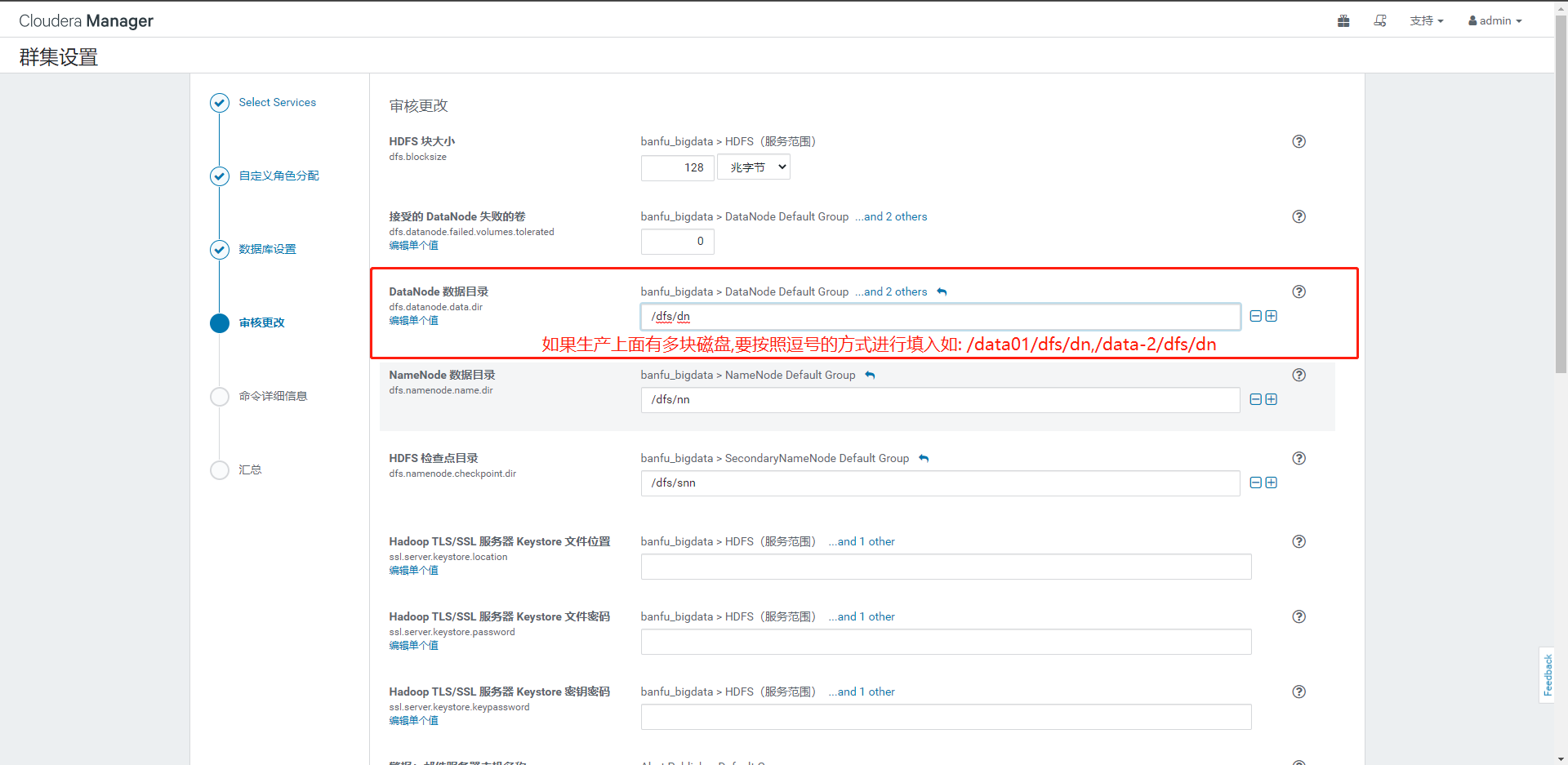

5.13审核更改

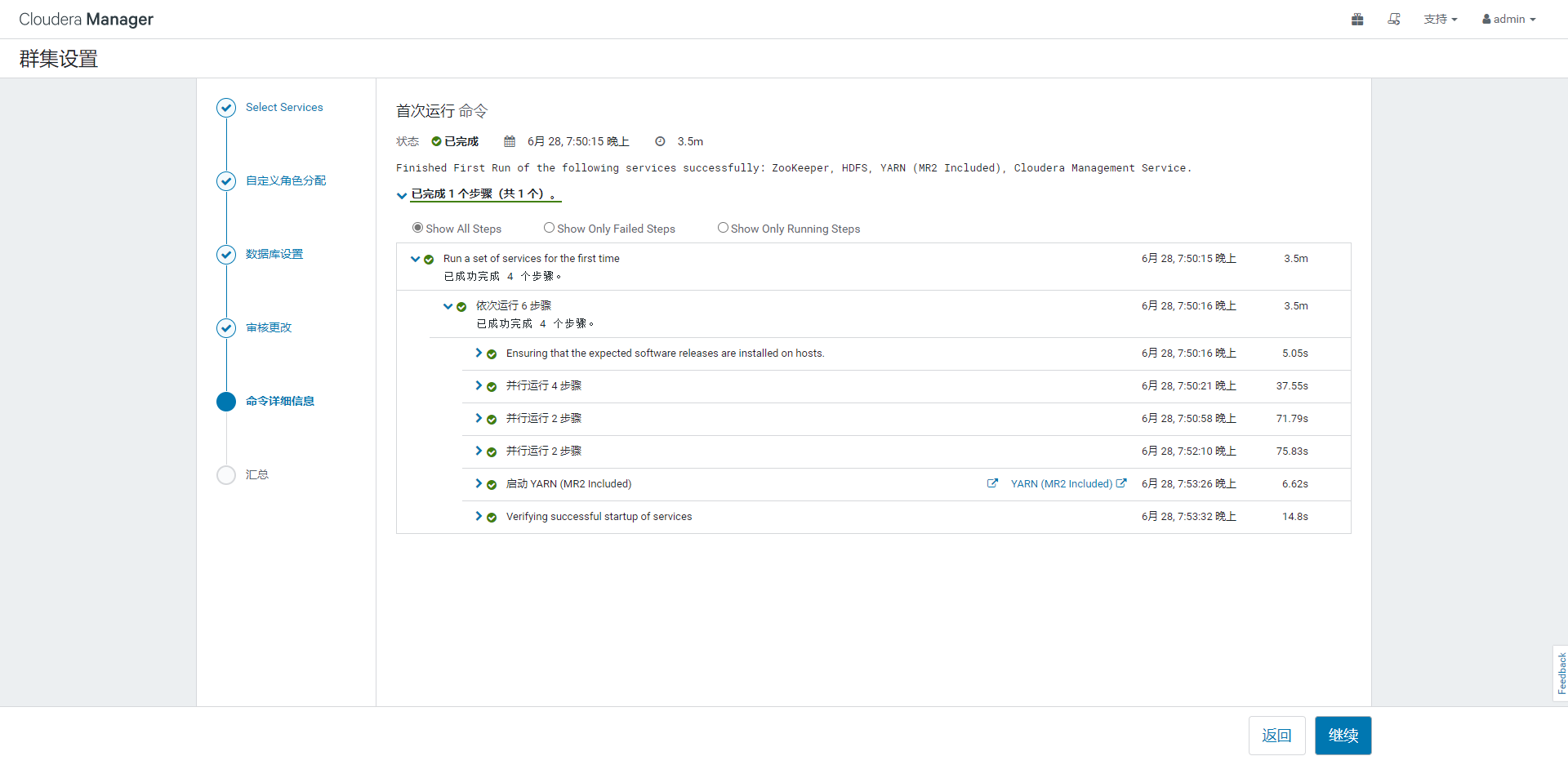

5.14首次运行

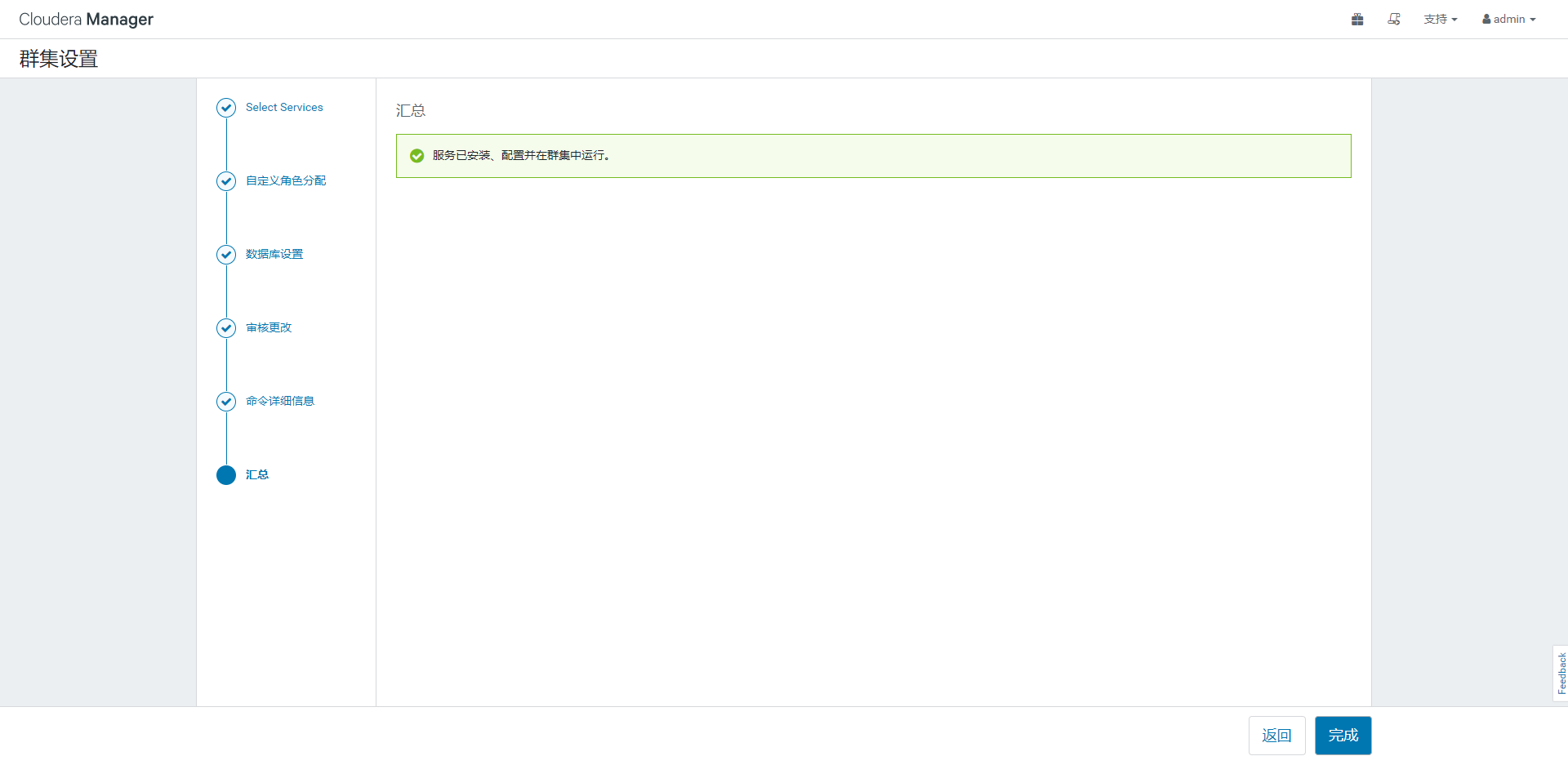

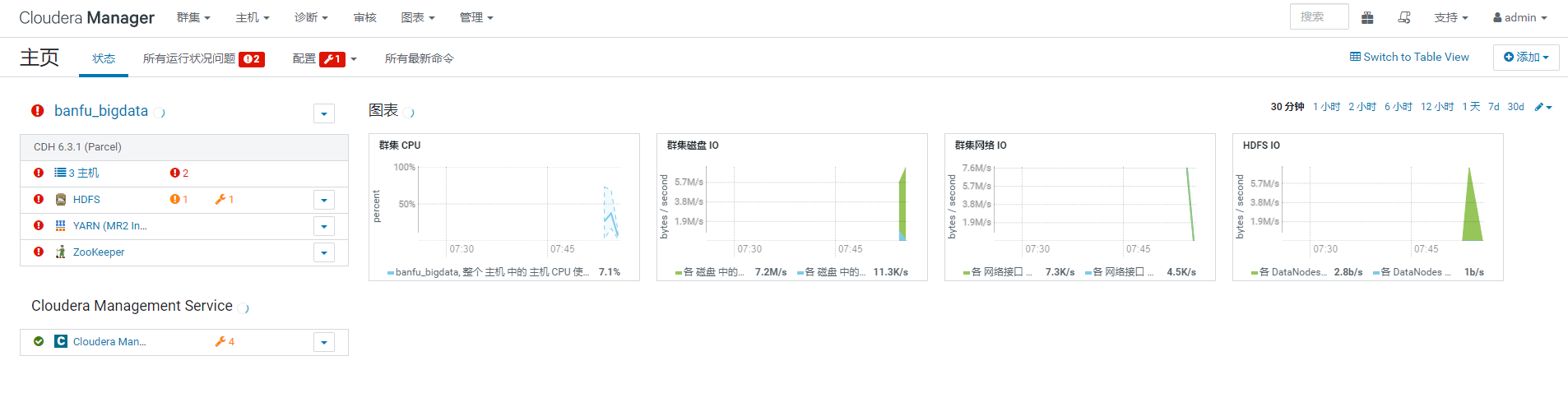

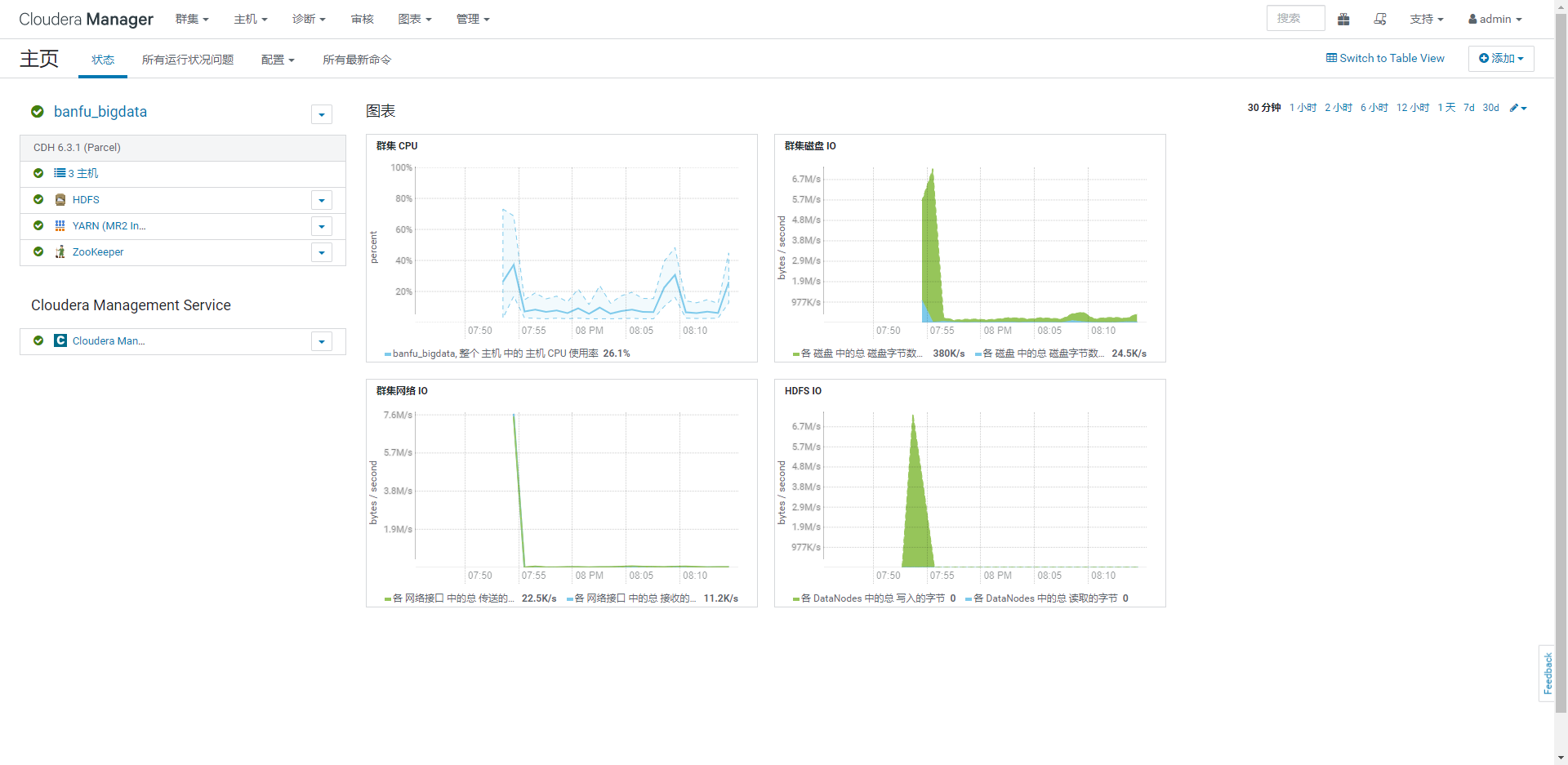

5.15汇总

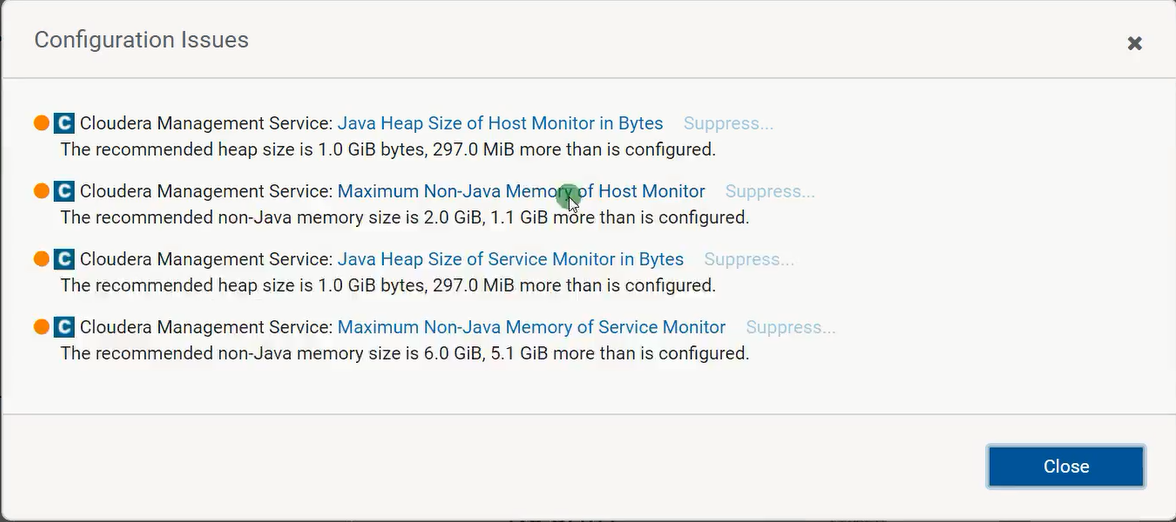

6.解决报错

因为官方配置里的内存大小设置跟我们的不一样

生产上要设置成推荐大小, 不设置可以先点击Suppress

大部分可以抑制掉

• 解决

7.停止关闭集群

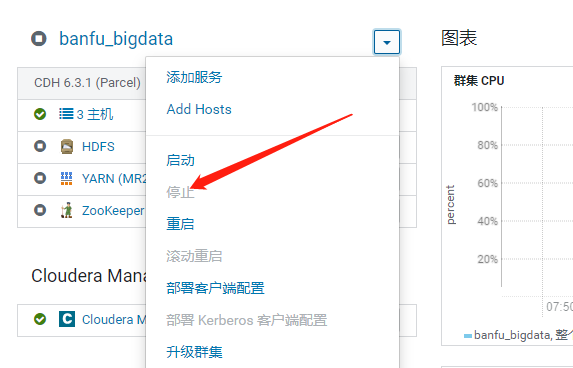

7.1先停止集群

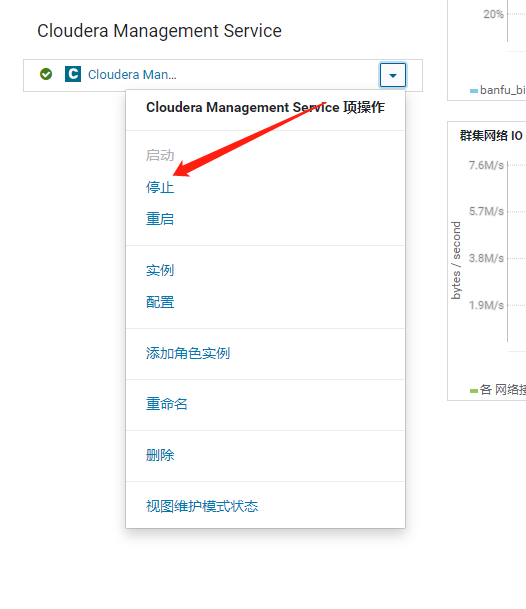

7.2再停止Cloudera Management Service

7.3停止所有机器的Agent

7.4 停止Server

7.5 停止MySQL

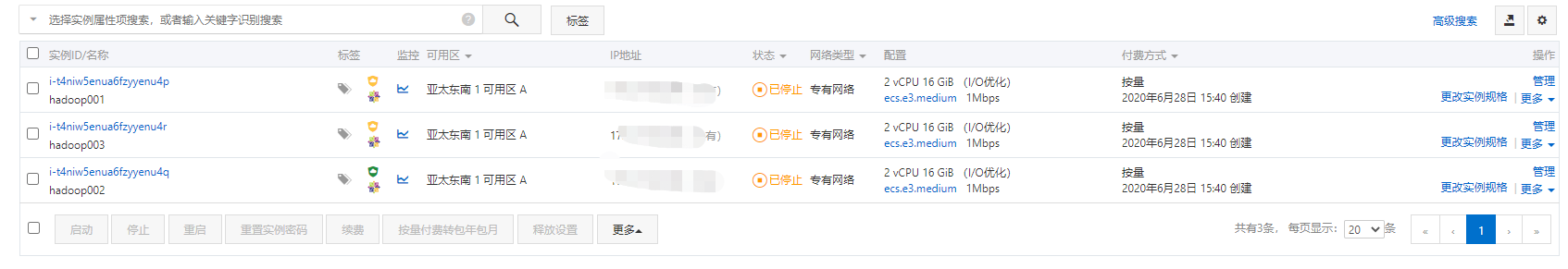

7.6阿里云服务器选择停机不收费

8.卸载集群

9.清理日志
